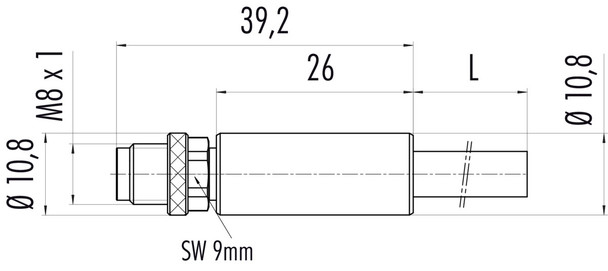

Binder 77-3505-0000-20708-0200 M8 Male cable connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PVC, grey, 8 x 0.25 mm², 2 m

No reviews yet Write a Review
$51.80
Binder 77-3505-0000-20708-0200 M8 Male cable connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PVC, grey, 8 x 0.25 mm², 2 m | American Cable Assemblies
Binder 77-3505-0000-20708-0200 M8 Male cable connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PVC, grey, 8 x 0.25 mm², 2 m
Binder 77-3505-0000-20708-0200 M8 Male cable connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PVC, grey, 8 x 0.25 mm², 2 m
SKU:
BN77-3505-0000-20708-0200
MPN:
77-3505-0000-20708-0200
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M8, series 718, Automation Technology - Sensors and Actuators
Numbers of contacts:
8
Cable length:
2 m
$51.80

Frequently Bought Together:

Binder 77-3505-0000-20708-0200 M8 Male cable connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PVC, grey, 8 x 0.25 mm², 2 m | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Easy-to-mount M8 cable connectors to DIN EN 61076-2-104 in protection class IP65/67, unshielded and shielded versions with 360° shielding, iris spring and shielding rings ensure reliable EMC shielding. Rated current 1A to 4A and rated voltage 30V to 60V depending on the number of contacts. There are solder and screw terminals. The flange connectors have solder and dip solder connections or stranded wires.
General Features
Part no. 77 3505 0000 20708-0200
Connector design Male cable connector
Cable length 2 m
Version Connector pin straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 141
Customs tariff number 85444290

Electrical Parameters
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current (40 °C) 1.5 A
Insulation resistance > 10? ?
Pollution degree 3
Insulating material group II
EMC compliance shielded
Shield connection Screen on shield sleeve
Voltage 650 V DC
Material
Contact body material PUR
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 7b1e7e34-eed1-4e37-bf10-ea305e1d3f05
