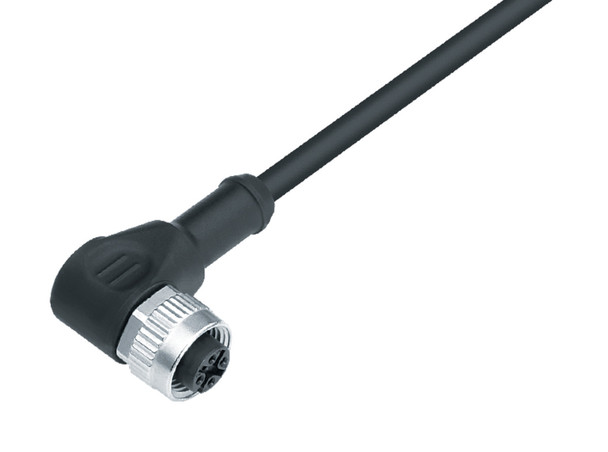

Binder 77-3434-0000-50712-0500 M12-A Female angled connector, Contacts: 12, unshielded, moulded on the cable, IP69K, UL, PUR, black, 12 x 0.25 mm², 5 m

No reviews yet Write a Review
$54.00
Binder 77-3434-0000-50712-0500 M12-A Female angled connector, Contacts: 12, unshielded, moulded on the cable, IP69K, UL, PUR, black, 12 x 0.25 mm², 5 m | American Cable Assemblies
Binder 77-3434-0000-50712-0500 M12-A Female angled connector, Contacts: 12, unshielded, moulded on the cable, IP69K, UL, PUR, black, 12 x 0.25 mm², 5 m
Binder 77-3434-0000-50712-0500 M12-A Female angled connector, Contacts: 12, unshielded, moulded on the cable, IP69K, UL, PUR, black, 12 x 0.25 mm², 5 m
SKU:
BN77-3434-0000-50712-0500
MPN:
77-3434-0000-50712-0500
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M12, series 763, Automation Technology - Sensors and Actuators
Numbers of contacts:
12
Cable length:
5 m
$54.00

Frequently Bought Together:

Binder 77-3434-0000-50712-0500 M12-A Female angled connector, Contacts: 12, unshielded, moulded on the cable, IP69K, UL, PUR, black, 12 x 0.25 mm², 5 m | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.
General Features
Part no. 77 3434 0000 50712-0500
Connector design Female angled connector
Cable length 5 m
Version Connector socket angled
Connector locking system screw
Termination moulded on the cable
Degree of protection IP69K
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 90 °C
Mechanical operation > 100 Mating cycles
Weight (g) 596
Customs tariff number 85444290

Electrical Parameters
Rated voltage 30 V
Rated impulse voltage 500 V
Rated current (40 °C) 1.5 A
Insulation resistance ? 10¹? ?
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Material
Housing material PUR
Contact body material PUR
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number bad5be9e-1388-49b7-a336-7df775997b0d
Declarations of conformity
RoHS Directive 2011/65/EU (EN 50581:2012)
