Complementing the wide range of cable and flange connectors, connecting cables with screw locking are available in IP67/68 and IP69K to precisely meet customer requirements. The cable length can be 1m or 2m as standard. To extend the range of applications and enable flexible signal distribution, we offer M8x1 and M12x1 duo connectors moulded onto the cable as well as M8 and M12 compatible two-way distributors.

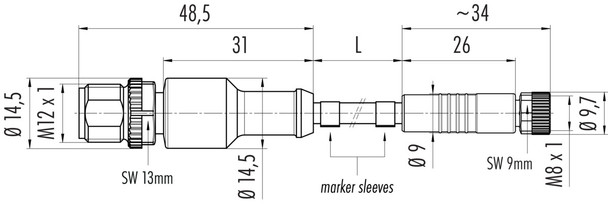

General Features| Part no. | 77 3429 3406 50004-0030 |
|---|
| Connector design | Male cable connector - female cable connector |
|---|
| Cable length | 0.3 m |
|---|
| Version | Connecting cable |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.34 mm² / AWG 22 |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 68 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PUR |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 75530375-4f50-4cfd-b021-ca1be2b4af92 |
|---|
