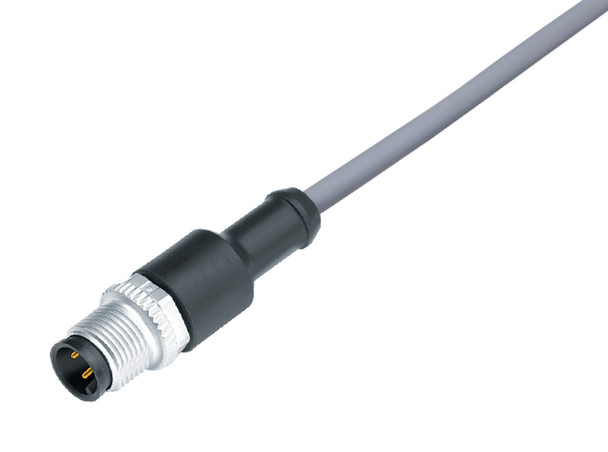

Binder 77-3429-0000-20712-1000 M12-A Male cable connector, Contacts: 12, unshielded, moulded on the cable, IP68, UL, PVC, grey, 12 x 0.25 mm², 10 m

No reviews yet Write a Review
$58.08
Binder 77-3429-0000-20712-1000 M12-A Male cable connector, Contacts: 12, unshielded, moulded on the cable, IP68, UL, PVC, grey, 12 x 0.25 mm², 10 m | American Cable Assemblies
Binder 77-3429-0000-20712-1000 M12-A Male cable connector, Contacts: 12, unshielded, moulded on the cable, IP68, UL, PVC, grey, 12 x 0.25 mm², 10 m
Binder 77-3429-0000-20712-1000 M12-A Male cable connector, Contacts: 12, unshielded, moulded on the cable, IP68, UL, PVC, grey, 12 x 0.25 mm², 10 m
SKU:
BN77-3429-0000-20712-1000
MPN:
77-3429-0000-20712-1000
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M12, series 763, Automation Technology - Sensors and Actuators
Numbers of contacts:
12
Cable length:
10 m
$58.08

Frequently Bought Together:

Binder 77-3429-0000-20712-1000 M12-A Male cable connector, Contacts: 12, unshielded, moulded on the cable, IP68, UL, PVC, grey, 12 x 0.25 mm², 10 m | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.
General Features
Part no. 77 3429 0000 20712-1000
Connector design Male cable connector
Cable length 10 m
Version Connector pin straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP68
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 90 °C
Mechanical operation > 100 Mating cycles
Weight (g) 836
Customs tariff number 85444290

Electrical Parameters
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current (40 °C) 1.5 A
Insulation resistance ? 10¹? ?
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Material
Housing material PUR
Contact body material PUR
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 0155df66-d2f8-4dc4-8b31-36c76bfeaeca
Declarations of conformity
RoHS Directive 2011/65/EU (EN 50581:2012)
