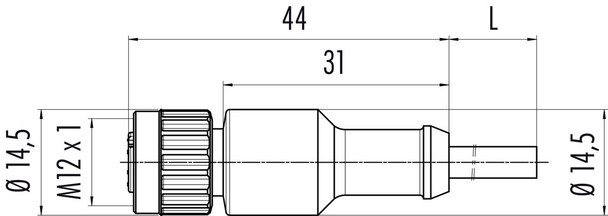

Binder 77-3420-0000-50708-0500 M12-A Female cable connector, Contacts: 8, unshielded, moulded on the cable, IP68, UL, PUR, black, 8 x 0.25 mm², 5 m

No reviews yet Write a Review
$36.04
Binder 77-3420-0000-50708-0500 M12-A Female cable connector, Contacts: 8, unshielded, moulded on the cable, IP68, UL, PUR, black, 8 x 0.25 mm², 5 m | American Cable Assemblies
Binder 77-3420-0000-50708-0500 M12-A Female cable connector, Contacts: 8, unshielded, moulded on the cable, IP68, UL, PUR, black, 8 x 0.25 mm², 5 m
Binder 77-3420-0000-50708-0500 M12-A Female cable connector, Contacts: 8, unshielded, moulded on the cable, IP68, UL, PUR, black, 8 x 0.25 mm², 5 m
SKU:
BN77-3420-0000-50708-0500
MPN:
77-3420-0000-50708-0500
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M12, series 763, Automation Technology - Sensors and Actuators
Numbers of contacts:
8
Cable length:
5 m
$36.04

Frequently Bought Together:

Binder 77-3420-0000-50708-0500 M12-A Female cable connector, Contacts: 8, unshielded, moulded on the cable, IP68, UL, PUR, black, 8 x 0.25 mm², 5 m | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.
General Features
Part no. 77 3420 0000 50708-0500
Connector design Female cable connector
Cable length 5 m
Version Connector socket straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP68
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 336
Customs tariff number 85444290

Electrical Parameters
Rated voltage 60 V
Rated voltage UL 2457
Rated impulse voltage 800 V
Rated current (40 °C) 2 A (UL 1.5 A)
Insulation resistance ? 10? ?
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Material
Housing material PUR
Contact body material PUR black
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material PA
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 4392bd76-e2f9-4875-96a5-0d2f4979e853
Declarations of conformity
RoHS Directive 2011/65/EU (EN 50581:2012)
