In Stock
Binder

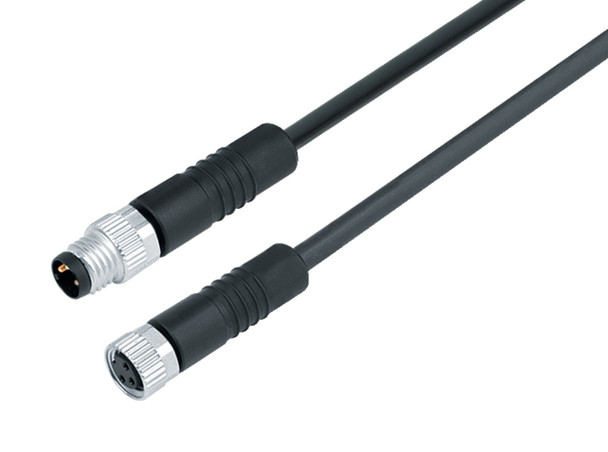

Binder 77-3406-3405-30003-0100 M8 Connecting cable male cable connector - female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67/IP69K, UL, TPE, black, 3 x AWG 22, 1 m

No reviews yet Write a Review
$19.84
Binder 77-3406-3405-30003-0100 M8 Connecting cable male cable connector - female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67/IP69K, UL, TPE, black, 3 x AWG 22, 1 m | American Cable Assemblies
Binder 77-3406-3405-30003-0100 M8 Connecting cable male cable connector - female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67/IP69K, UL, TPE, black, 3 x AWG 22, 1 m
Binder 77-3406-3405-30003-0100 M8 Connecting cable male cable connector - female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67/IP69K, UL, TPE, black, 3 x AWG 22, 1 m
SKU:
BN77-3406-3405-30003-0100
MPN:
77-3406-3405-30003-0100
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M8, series 718, Automation Technology - Sensors and Actuators
Numbers of contacts:
3
Cable length:
1 m
$19.84

Frequently Bought Together:

Binder 77-3406-3405-30003-0100 M8 Connecting cable male cable connector - female cable connector, Contacts: 3, unshielded, moulded on the cable, IP67/IP69K, UL, TPE, black, 3 x AWG 22, 1 m | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Easy-to-mount M8 cable connectors to DIN EN 61076-2-104 in protection class IP65/67, unshielded and shielded versions with 360° shielding, iris spring and shielding rings ensure reliable EMC shielding. Rated current 1A to 4A and rated voltage 30V to 60V depending on the number of contacts. There are solder and screw terminals. The flange connectors have solder and dip solder connections or stranded wires.
General Features
Part no. 77 3406 3405 30003-0100
Connector design Connecting cable male cable connector - female cable connector
Cable length 1 m
Version Connecting cable
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67/IP69K
Cross-sectional area 0.34 mm² / AWG 22
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles

Electrical Parameters
Rated voltage 60 V
Rated impulse voltage 800 V
Rated current (40 °C) 4.0 A
Insulation resistance > 10? ?
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Material
Housing material PUR
Contact body material PUR
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
SCIP number SCIP-number not available
Declarations of conformity
Low Voltage Directive 2014/35/EU (EN 60529:1991;EN 60204-1:2018)
RoHS Directive 2011/65/EU (EN 50581:2012)
