Binder 77-0694-0000-50704-0500 M12-S Female angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, black, 4 x 1.50 mm², 5 m

No reviews yet Write a Review

$60.12

Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies

Binder 77-0694-0000-50704-0500 M12-S Female angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, black, 4 x 1.50 mm², 5 m

Binder 77-0694-0000-50704-0500 M12-S Female angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, black, 4 x 1.50 mm², 5 m

Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies

Binder 77-0694-0000-50704-0500 M12-S Female angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, black, 4 x 1.50 mm², 5 m

Binder 77-0694-0000-50704-0500 M12-S Female angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, black, 4 x 1.50 mm², 5 m

SKU:: BN77-0694-0000-50704-0500
UPC:
MPN:: 77-0694-0000-50704-0500
Availability:: Lead time - Stock items ship 1-2 Days
Minimum Purchase:: 1 unit
Current Stock:
Numbers of contacts:: 3+PE
Cable length:: 5 m

Quantity:

$60.12

Frequently Bought Together:

Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies

Inc. Tax

Ex. Tax

Binder 77-0694-0000-50704-0500 M12-S Female angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, black, 4 x 1.50 mm², 5 m

$60.12

Description
Product Reviews

Description

General Features
Part no.	77 0694 0000 50704-0500
Connector design	Female angled connector
Cable length	5 m
Version	Connector socket angled
Connector locking system	screw
Termination	moulded on the cable
Degree of protection	IP68
Cross-sectional area	1.50 mm² / AWG 16
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	756
Customs tariff number	85444290

Electrical Parameters
Rated voltage	630 V
Rated impulse voltage	6000 V

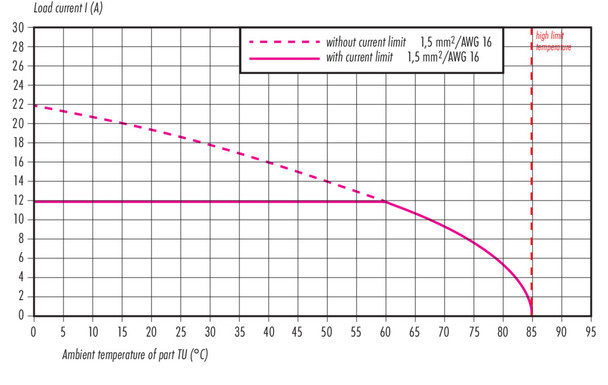

Rated current (40 °C)	12.0 A
Pollution degree	3
Overvoltage category	III
Insulating material group	II
EMC compliance	unshielded

Material
Housing material	PUR
Contact body material	PUR
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	89fc9061-7354-443a-8121-3bd7d4d98f9c

Structure of the cableElectrical propertiesMechanical propertiesThermal propertiesOther features

Cable Data
Cable diameter	8.1 mm
Cross section	4 x 1.50 mm²
Sheath material	PUR
Single-lead insulation	PP
Single-lead structure	84 x 0.15 mm
Cable color	black
Conductor resistance	146 ?/Km (20°C)
Bending radius, fixed cable	? 10 x Ø
Bending radius, moving cable	? 15 x Ø
Bending cycles	5 million
Travel distance, horizontal	20 m
Travel speed	180 m/min (at 2.5 m)
Temperature range cable in move from/to	-20 °C / 80 °C
Temperature range cable fixed from/to	-50 °C / 80 °C
Halogen free	yes
