Connectors of the 814 series with screw locking according to DIN EN 61076-2-111 are S-coded for AC applications. They have 2+PE and 3+PE contacts with a rated current of 12A at 630VAC. These connectors are available in straight and angled cable versions, with screw terminal connection. The flange versions are available with screw terminals as well as with stranded wires.
General Features| Part no. | 77 0690 0689 50704-0200 |
|---|

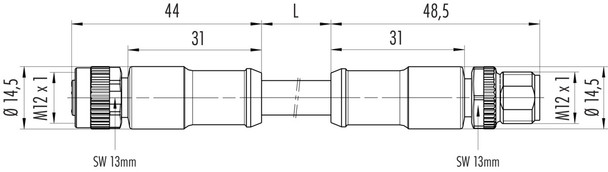

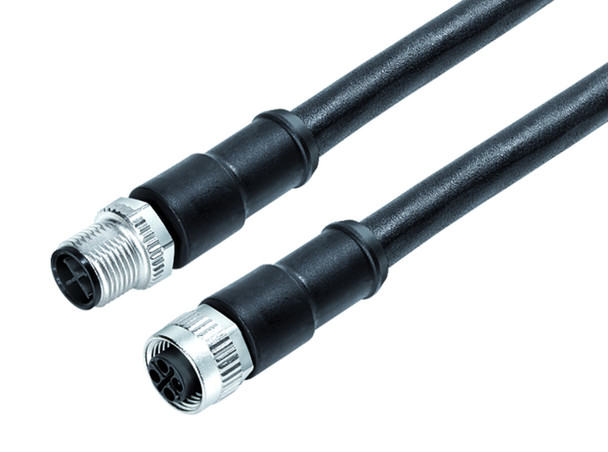

| Connector design | Connecting cable male cable connector - female cable connector |
|---|
| Cable length | 2 m |
|---|
| Version | Connecting cable |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP68 |
|---|
| Cross-sectional area | 1.50 mm² / AWG 16 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 795 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 630 V |
|---|
| Rated impulse voltage | 6000 V |
|---|
| Rated current (40 °C) | 12.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | c0940acd-196a-471d-a17c-daeab74a416d |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 8.1 mm |
|---|
| Cross section | 4 x 1.50 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PP |
|---|
| Single-lead structure | 84 x 0.15 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 146 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 10 x Ø |
|---|
| Bending radius, moving cable | ? 15 x Ø |
|---|
| Bending cycles | 5 million |
|---|
| Travel distance, horizontal | 20 m |
|---|
| Travel speed | 180 m/min (at 2.5 m) |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -20 °C / 80 °C |
|---|
| Temperature range cable fixed from/to | -50 °C / 80 °C |
|---|
| Other features |
| Halogen free | yes |
|---|
