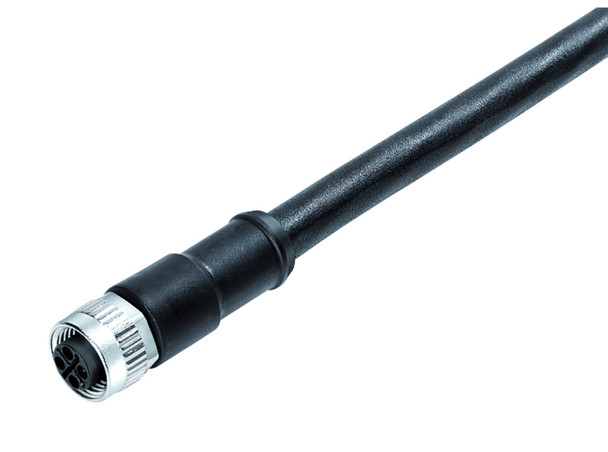

Binder 77-0690-0000-50704-0200 M12-S Female cable connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, black, 4 x 1.50 mm², 2 m

No reviews yet Write a Review
$40.44
Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies
Binder 77-0690-0000-50704-0200 M12-S Female cable connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, black, 4 x 1.50 mm², 2 m
Binder 77-0690-0000-50704-0200 M12-S Female cable connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, PUR, black, 4 x 1.50 mm², 2 m
SKU:
BN77-0690-0000-50704-0200
MPN:
77-0690-0000-50704-0200
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Numbers of contacts:
3+PE
Cable length:
2 m
$40.44

Frequently Bought Together:

Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Note: All Binder product sales are final. Non-cancelable, non-returnable (NCNR).

General Features
Part no. 77 0690 0000 50704-0200
Connector design Female cable connector
Cable length 2 m
Version Connector socket straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP68
Cross-sectional area 1.50 mm² / AWG 16
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 451
Customs tariff number 85444290

Electrical Parameters
Rated voltage 630 V
Rated impulse voltage 6000 V

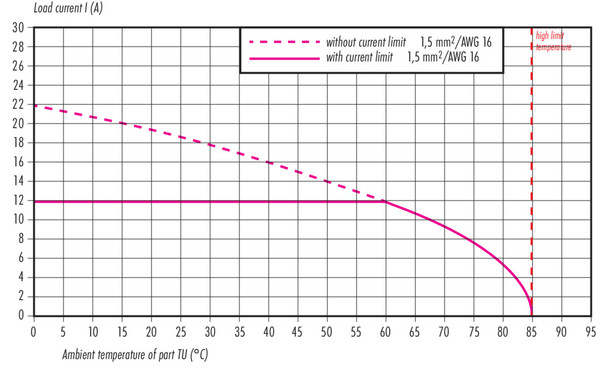

Rated current (40 °C) 12.0 A
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance unshielded
Material
Housing material PUR
Contact body material PUR
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 43539fea-1609-45a5-8262-b4b403074a39
Structure of the cableElectrical propertiesMechanical propertiesThermal propertiesOther features
Cable Data
Cable diameter 8.1 mm
Cross section 4 x 1.50 mm²
Sheath material PUR
Single-lead insulation PP
Single-lead structure 84 x 0.15 mm
Cable color black
Conductor resistance 146 ?/Km (20°C)
Bending radius, fixed cable ? 10 x Ø
Bending radius, moving cable ? 15 x Ø
Bending cycles 5 million
Travel distance, horizontal 20 m
Travel speed 180 m/min (at 2.5 m)
Temperature range cable in move from/to -20 °C / 80 °C
Temperature range cable fixed from/to -50 °C / 80 °C
Halogen free yes
