In Stock

Binder

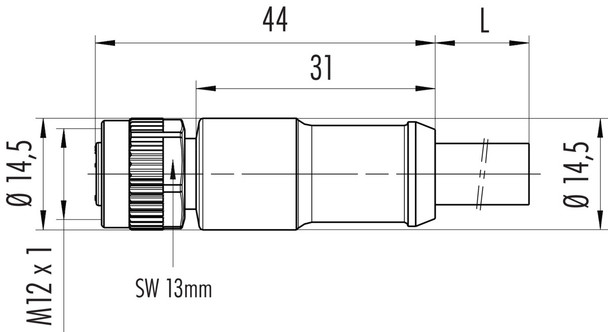

Binder 77-0690-0000-50703-0200 M12-S Female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, PUR, black, 3 x 1.50 mm², 2 m

No reviews yet Write a Review

$40.28

Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies

Binder 77-0690-0000-50703-0200 M12-S Female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, PUR, black, 3 x 1.50 mm², 2 m

Binder 77-0690-0000-50703-0200 M12-S Female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, PUR, black, 3 x 1.50 mm², 2 m

Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies

Binder 77-0690-0000-50703-0200 M12-S Female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, PUR, black, 3 x 1.50 mm², 2 m

Binder 77-0690-0000-50703-0200 M12-S Female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, PUR, black, 3 x 1.50 mm², 2 m

SKU:: BN77-0690-0000-50703-0200
UPC:
MPN:: 77-0690-0000-50703-0200
Availability:: Lead time - Stock items ship 1-2 Days
Minimum Purchase:: 1 unit
Current Stock:
Numbers of contacts:: 2+PE
Cable length:: 2 m

Quantity:

$40.28

Frequently Bought Together:

Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies

Inc. Tax

Ex. Tax

Binder 77-0690-0000-50703-0200 M12-S Female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, PUR, black, 3 x 1.50 mm², 2 m

$40.28

Description
Product Reviews

Description

General Features
Part no.	77 0690 0000 50703-0200
Connector design	Female cable connector
Cable length	2 m
Version	Connector socket straight
Connector locking system	screw
Termination	moulded on the cable
Degree of protection	IP68
Cross-sectional area	1.50 mm² / AWG 16
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	639
Customs tariff number	85444290

Electrical Parameters
Rated voltage	630 V
Rated impulse voltage	6000 V
Rated current (40 °C)	12.0 A
Pollution degree	3
Overvoltage category	III
Insulating material group	II
EMC compliance	unshielded

Material
Housing material	PUR
Contact body material	PUR
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	714f1c5c-14c7-4353-9942-5426ff22cae5

Structure of the cableThermal propertiesOther features

Cable Data
Cable diameter	7.5 mm
Cross section	3 x 1.50 mm²
Sheath material	PUR
Single-lead insulation	PP
Single-lead structure	84 x 0.15 mm
Cable color	black
Temperature range cable in move from/to	-30 °C / 90 °C
Temperature range cable fixed from/to	-50 °C / 90 °C
Halogen free	yes
