Connectors of the 813 series with screw locking according to DIN EN 61076-2-111 are T-coded for DC applications. T-coded versions have 4 contacts with a rated current of 12 A at 63 VDC. The straight and angled cable connectors have screw terminals, but are also available with moulded cable. Flange connectors have dip solder terminals, but also stranded wires.

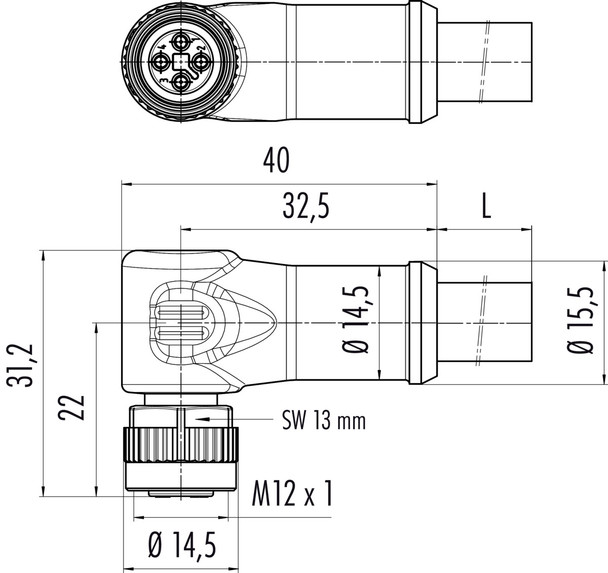

General Features| Part no. | 77 0634 0000 50704-0200 |
|---|
| Connector design | Female angled connector |
|---|
| Cable length | 2 m |
|---|
| Version | Connector socket angled |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP68 |
|---|
| Cross-sectional area | 1.50 mm² / AWG 16 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 434 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 63 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 12.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PUR black |
|---|
| Contact material | CuZn (brass) / CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 46f73e99-0dc5-4f9a-b564-7bdd2f3e8a55 |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 8.0 mm |
|---|
| Cross section | 4 x 1.50 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PP |
|---|
| Single-lead structure | 84 x 0.15 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 13.3 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 7.5 x Ø |
|---|
| Bending radius, moving cable | ? 10 x Ø |
|---|
| Bending cycles | 5 million |
|---|
| Permitted acceleration | 5 m/s² |
|---|
| Travel distance, horizontal | 20 m |
|---|
| Travel speed | ? 300 m/min |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -30 °C / 80 °C |
|---|
| Temperature range cable fixed from/to | -50 °C / 80 °C |
|---|
| Other features |
| Halogen free | yes |
|---|
