The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.
General Features| Part no. | 76 0932 0111 00008-0200 Alternative part no.: 09 3488 00 08 |
|---|
| Notice | Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the Contact Customer Service form on the right. More |
|---|

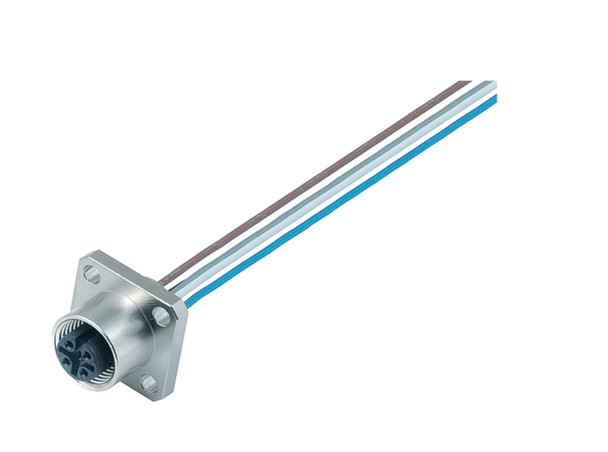

| Connector design | Square female panel mount connector |
|---|
| Wire length | 0.2 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | single wires |
|---|
| Degree of protection | IP40
IP67 with seal, see accessories |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 19.556 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 30 V |
|---|
| Rated voltage UL | 2458 |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 2 A (UL 1.5 A) |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | CuZn (Brass nickel plated) |
|---|
| Contact body material | PA black |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| SCIP number | b731d550-d609-4a9b-bcca-74e77a97fa01 |
|---|
