In Stock
Binder

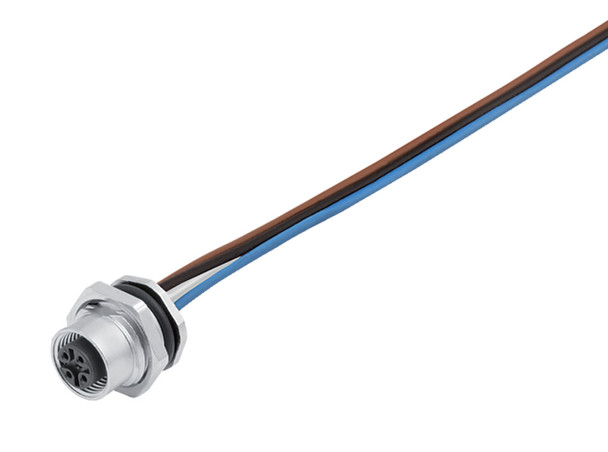

Binder 76-0532-1011-00005-0200 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP68/IP69K, UL, PG 9, front fastened

No reviews yet Write a Review
$21.68
Binder 76-0532-1011-00005-0200 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP68/IP69K, UL, PG 9, front fastened | American Cable Assemblies
Binder 76-0532-1011-00005-0200 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP68/IP69K, UL, PG 9, front fastened
Binder 76-0532-1011-00005-0200 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP68/IP69K, UL, PG 9, front fastened
SKU:
BN76-0532-1011-00005-0200
MPN:
76-0532-1011-00005-0200
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M12, series 763, Automation Technology - Sensors and Actuators
Numbers of contacts:
5
Mounting thread:
PG 9
Housing material:
Zinc die-cast nickel-plated
$21.68

Frequently Bought Together:

Binder 76-0532-1011-00005-0200 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP68/IP69K, UL, PG 9, front fastened | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.
General Features
Part no. 76 0532 1011 00005-0200
Alternative part no.: 09 3442 116 05
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Female panel mount connector
Wire length 0.2 m
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP68/IP69K
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 15.92
Customs tariff number 85369010

Electrical Parameters
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current (40 °C) 4 A (3 A UL)
Insulation resistance > 10? ?
Pollution degree 3
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Material
Housing material Zinc die-cast nickel-plated
Contact body material PA black
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number eb2d7fd8-ff5c-4dbe-a1db-f40b40918b63
