M12 connectors with X-coding of the 825/876 series for high-performance applications such as PROFINET and Ethernet have screw/cut terminal connections. Cable connectors are also available with moulded cable, flange connectors have solder and dip solder connections. The connectors are excellently shielded and comply with protection class IP67. Shielded adapters M12-X to RJ45 are available straight and angled.

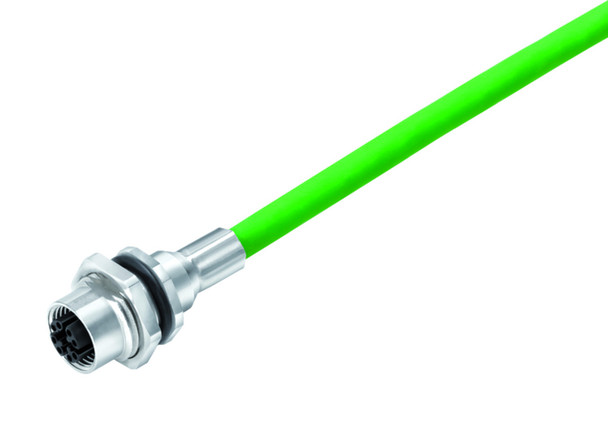

General Features| Part no. | 70 3784 706 08 |
|---|
| Connector design | Female panel mount connector |
|---|
| Cable length | 0.5 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | with cable assembled |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 4 x 2 x AWG 26 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 41.00 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 50 V (AC) / 60 V (DC) |
|---|
| Rated current (40 °C) | 0.5 A |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Transmission rate | CAT 6A |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the housing |
|---|
Material| Housing material | Zinc die-cast nickel-plated |
|---|
| Contact body material | PA |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | Zinc die-cast nickel-plated |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 47d1f86c-43e1-4e18-80ef-acb2f8aa134d |
|---|
Cable Data| Structure of the cable |
| Cable type | Ethernet |
|---|
| Cable diameter | 6.2 mm |
|---|
| Cross section | 4 x 2 x AWG 26/7 |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PE |
|---|
| Single-lead structure | AWG 26/7 |
|---|
| Cable color | green |
|---|
| Electrical properties |
| Conductor resistance | 145 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 8 x Ø |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -10 °C / 60 °C |
|---|
| Temperature range cable fixed from/to | -40 °C / 85 °C |
|---|
| Other features |
| Halogen free | yes |
|---|
