The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.

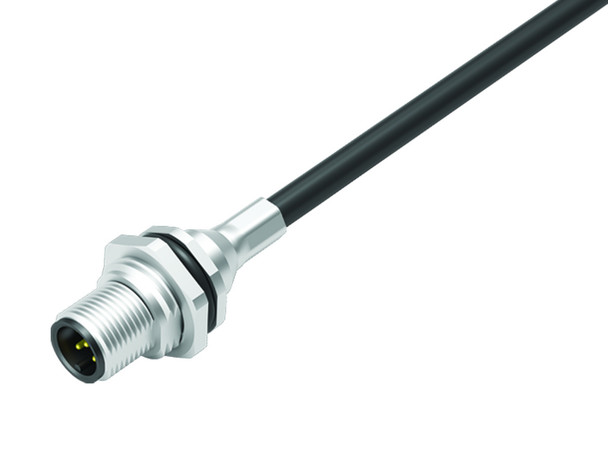

General Features| Part no. | 70 3441 288 05 |
|---|
| Connector design | Male panel mount connector |
|---|
| Cable length | 0.5 m |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | with cable assembled |
|---|
| Degree of protection | IP68 |
|---|
| Temperature range from/to | -25 °C / 70 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 0.00 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the housing |
|---|
Material| Housing material | Zinc die-cast nickel-plated |
|---|
| Contact body material | PA |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | SCIP-number not available |
|---|
