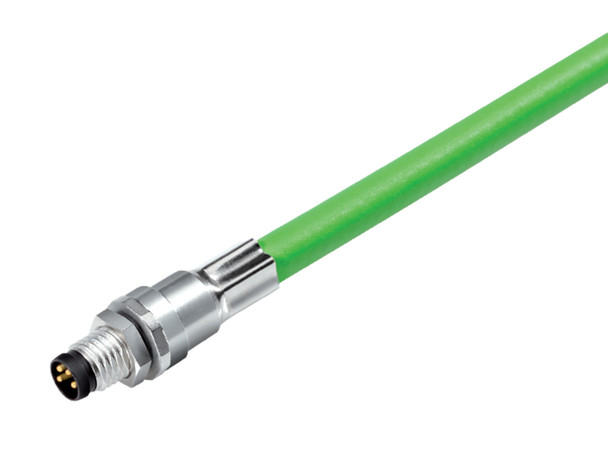

Binder 70-3421-005-04 M8 Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, Ethernet, PUR, green, 4 x AWG 22, 0.5 m

No reviews yet Write a Review
$37.44
Binder 70-3421-005-04 M8 Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, Ethernet, PUR, green, 4 x AWG 22, 0.5 m | American Cable Assemblies
Binder 70-3421-005-04 M8 Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, Ethernet, PUR, green, 4 x AWG 22, 0.5 m
Binder 70-3421-005-04 M8 Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, Ethernet, PUR, green, 4 x AWG 22, 0.5 m
SKU:
BN70-3421-005-04
MPN:
70-3421-005-04
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
$37.44

Frequently Bought Together:

Binder 70-3421-005-04 M8 Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, Ethernet, PUR, green, 4 x AWG 22, 0.5 m | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Easy-to-mount M8 cable connectors to DIN EN 61076-2-104 in protection class IP65/67, unshielded and shielded versions with 360° shielding, iris spring and shielding rings ensure reliable EMC shielding. Rated current 1A to 4A and rated voltage 30V to 60V depending on the number of contacts. There are solder and screw terminals. The flange connectors have solder and dip solder connections or stranded wires.
General Features
Part no. 70 3421 005 04
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Male panel mount connector
Cable length 0.5 m
Version Connector pin straight
Connector locking system screw
Termination with cable assembled
Degree of protection IP67
Cross-sectional area 0.34 mm² / AWG 22
Temperature range from/to -40 °C / 80 °C
Mechanical operation > 100 Mating cycles
Weight (g) 43.00
Customs tariff number 85444290

Electrical Parameters
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current (40 °C) 4.0 A
Pollution degree 3
Insulating material group II
EMC compliance shielded
Shield connection Shield on the housing
Material
Housing material Zinc die-cast nickel-plated
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 6c218029-0e26-4e86-a934-27d0bcf67389
