Description
Series 230 solenoid valve connectors in style C with low housing are available with 2+PE and 3+PE contacts and have protection class IP65/67. Self-terminating versions with screw terminals are also available, as are PUR-sheathed connecting cables in lengths of 3 m or 5 m, which comply with protection class IP67. Type C connectors, like types A and B, conform to DIN EN 175301-803. In addition to these solenoid valve connectors, the 230 series includes the matching appliance connectors. Type C is also available in LED and protective-sheathed versions

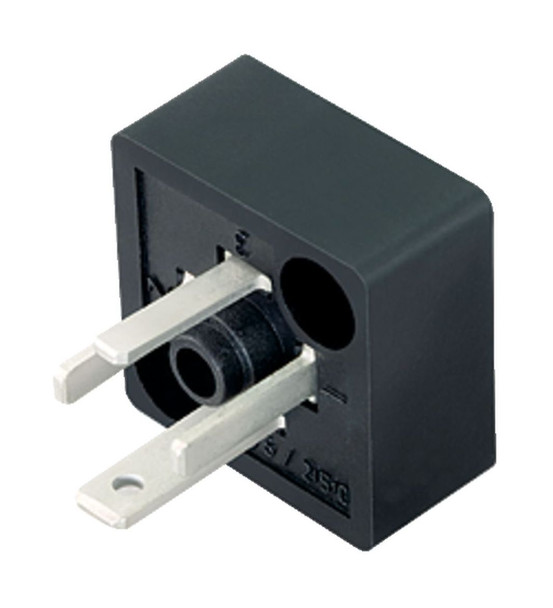

| Part no. | 43 1907 000 04 |
|---|---|
| Connector design | Male power connector |
| Version | Connector pin straight |
| Connector locking system | Central bolt |
| Termination | solder |
| Degree of protection | IP40 without seal IP65 with seal, see accessories |
| Cross-sectional area | 0.75 mm² / AWG 18 |
| Temperature range from/to | -25 °C / 120 °C |
| Mechanical operation | > 50 Mating cycles |
| Weight (g) | 3.66 |
| Customs tariff number | 85369010 |
| Rated voltage | 250 V |
|---|---|
| Rated impulse voltage | 800 V |
| Rated current (40 °C) | 6.0 A |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | III |
| EMC compliance | unshielded |
| Contact body material | PA (UL94 HB) |
|---|---|
| Contact material | CuZn (brass) |
| Contact plating | Sn (tin) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | SCIP-number not available |
