Description
| Part no. | 43 1831 000 03 |
|---|---|

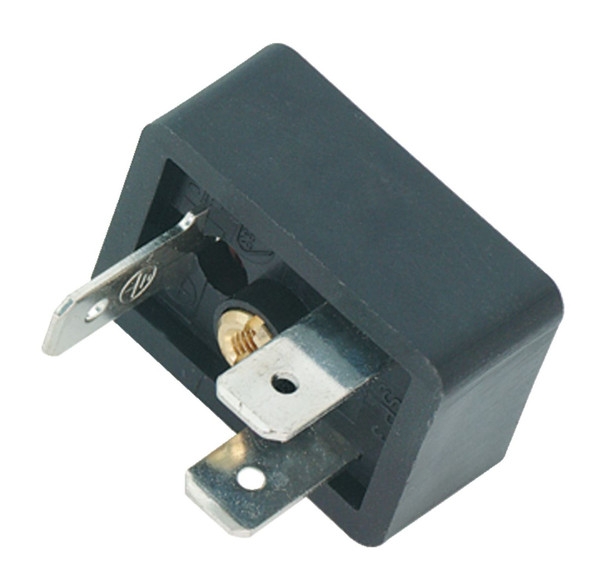

| Connector design | Male power connector |
| Version | Connector pin straight |
| Connector locking system | Central bolt |
| Termination | solder |
| Degree of protection | IP40 without seal IP65 with seal, see accessories |
| Cross-sectional area | 1.00 mm² / AWG 17 |
| Temperature range from/to | -25 °C / 100 °C |
| Mechanical operation | > 50 Mating cycles |
| Weight (g) | 8.80 |
| Customs tariff number | 85369010 |
| Rated voltage | 250 V |
|---|---|
| Rated impulse voltage | 4000 V |
| Rated current (40 °C) | 10.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | III |
| EMC compliance | unshielded |
| Contact body material | PA (UL94 HB) |
|---|---|
| Contact material | CuZn (brass) |
| Contact plating | Sn (tin) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | SCIP-number not available |
| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
