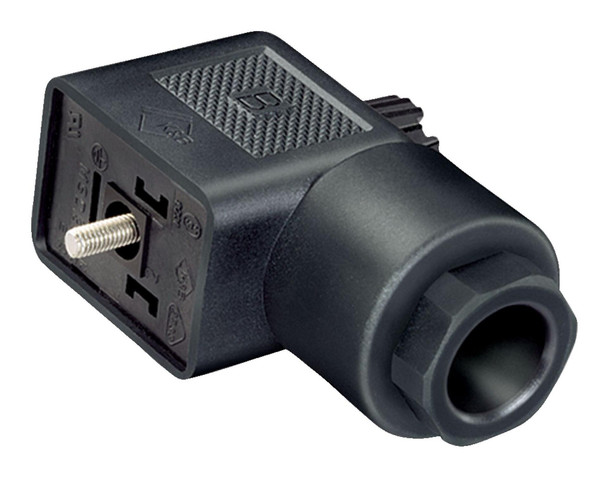

Series 220 solenoid valve connectors have a low housing and comply with design B DIN EN 175301-803. In addition to the DIN standard, the industrial standard is also offered. These connectors with 2+PE contacts are available pre-assembled and PUR moulded (IP67) or as self-terminating variants with screw terminal connections. The series is complemented by device connectors, as well as flat and profile seals to increase the degree of protection. If an optical status display is also required, the available LED versions can be used.
General Features
| Part no. |
43 1800 004 03 |
|---|
| Connector design |
Female power connector |
|---|
| Version |
Connector socket straight |
|---|
| Connector locking system |
Central bolt |
|---|
| Termination |
moulded on the cable |
|---|
| Degree of protection |
IP67
IP65 with seal, see accessories |
|---|
| Cross-sectional area |
0.34 mm² / AWG 24 |
|---|
| Temperature range from/to |
-25 °C / 85 °C |
|---|
| Mechanical operation |
> 100 Mating cycles |
|---|
| Weight (g) |
23.45 |
|---|
| Customs tariff number |
85369010 |
|---|
Electrical Parameters
| Rated voltage |
60 V |
|---|
| Rated impulse voltage |
1500 V |
|---|
| Rated current (40 °C) |
4.0 A |
|---|
| Insulation resistance |
? 10¹? ? |
|---|
| Pollution degree |
3 |
|---|
| Overvoltage category |
II |
|---|
| Insulating material group |
II |
|---|
| EMC compliance |
unshielded |
|---|
Material
| Contact body material |
PUR |
|---|
| Contact material |
CuZn (brass) / CuSn (bronze) |
|---|
| Contact plating |
Au (gold) |
|---|
| Locking material |
Zinc die-cast nickel-plated |
|---|
| REACH SVHC |
CAS 7439-92-1 (Lead) |
|---|
| SCIP number |
027aeea5-65d8-4299-ba28-64ee242f93e3 |
|---|
Cable Data
| Structure of the cable |
| Cable diameter |
4.3 mm |
|---|
| Sheath material |
PUR |
|---|
| Single-lead insulation |
PP9Y halogen-free |
|---|
| Single-lead structure |
43 x 0.10 mm |
|---|
| Cable color |
black |
|---|
| Mechanical properties |
| Bending radius, fixed cable |
? 5 x Ø |
|---|
| Bending radius, moving cable |
? 10 x Ø |
|---|
| Bending cycles |
> 5 million |
|---|
| Permitted acceleration |
? 5 m/s² |
|---|
| Travel speed |
? 200 m/min |
|---|
| Thermal properties |
| Temperature range cable in move from/to |
-25 °C / 80 °C |
|---|
| Temperature range cable fixed from/to |
-50 °C / 80 °C |
|---|
