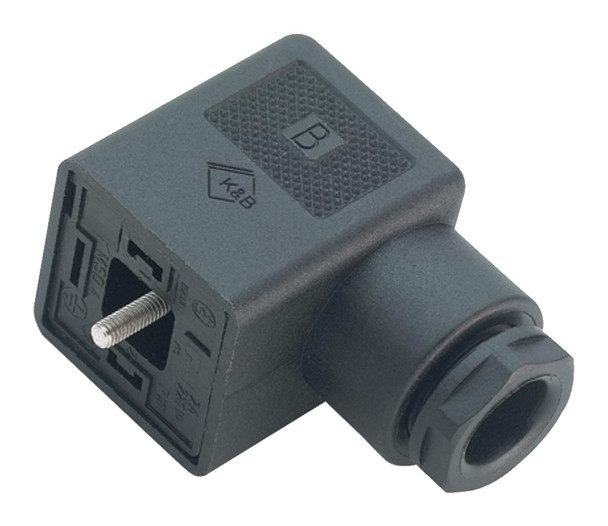

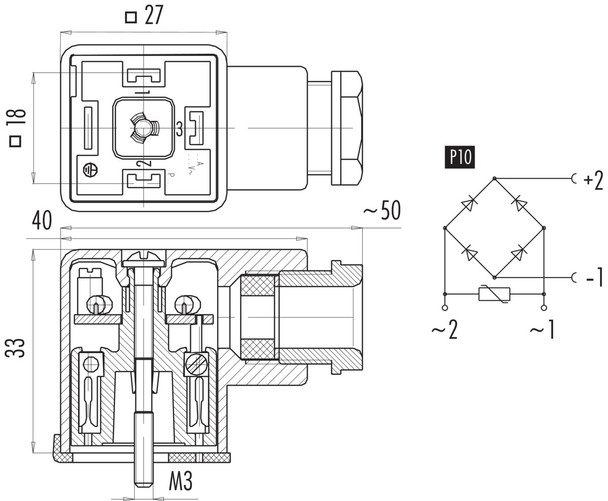

Series 210 solenoid valve connectors are available with low or standard housing. They comply with design A according to DIN EN 175301-803 (formerly DIN 43650) and have 2+PE and 3+PE contacts. They have protection class IP65/67 and are available as self-connectable and moulded versions. For visual status indication, many models are also available as LED variants. Your devices can be protected against electrical voltage peaks by an optional protective circuit inside the solenoid valve connector.
General Features| Part no. | 43 1728 122 04 |
|---|
| Connector design | Female power connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | Central bolt |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP69K
IP65 with seal, see accessories |
|---|
| Cross-sectional area | 1.50 mm² / AWG 16 |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 30.27 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 2500 V |
|---|
| Rated current (40 °C) | 8.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PUR |
|---|
| Contact material | CuSn (bronze) / CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | Zinc die-cast nickel-plated |
|---|
| REACH SVHC | None (No pollutants)
|
|---|
| SCIP number | 593ae956-80a3-4eb5-b29e-192849dee1ba |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 4.3 mm |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PP |
|---|
| Single-lead structure | 43 x 0.10 mm |
|---|
| Cable color | black |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 10 x Ø |
|---|
| Bending cycles | > 5 million |
|---|
| Permitted acceleration | ? 5 m/s² |
|---|
| Travel speed | ? 200 m/min |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -25 °C / 80 °C |
|---|
| Temperature range cable fixed from/to | -50 °C / 80 °C |
|---|
