Series 210 solenoid valve connectors are available with low or standard housing. They comply with design A according to DIN EN 175301-803 (formerly DIN 43650) and have 2+PE and 3+PE contacts. They have protection class IP65/67 and are available as self-connectable and moulded versions. For visual status indication, many models are also available as LED variants. Your devices can be protected against electrical voltage peaks by an optional protective circuit inside the solenoid valve connector.
General Features| Part no. | 43 1719 024 04 |
|---|

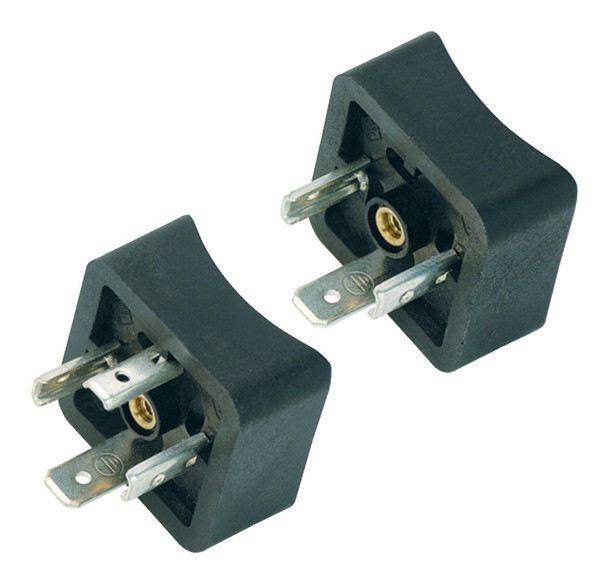

| Connector design | Male power connector, contacts angled inwards |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | Central bolt |
|---|
| Termination | solder |
|---|
| Degree of protection | IP40 without seal
IP65 with seal, see accessories |
|---|
| Cross-sectional area | 1.00 mm² / AWG 17 |
|---|
| Temperature range from/to | -25 °C / 100 °C |
|---|
| Mechanical operation | > 50 Mating cycles |
|---|
| Weight (g) | 10.70 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 4000 V |
|---|
| Rated current (40 °C) | 10.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PA (UL94 HB) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Sn (tin) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | SCIP-number not available |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
