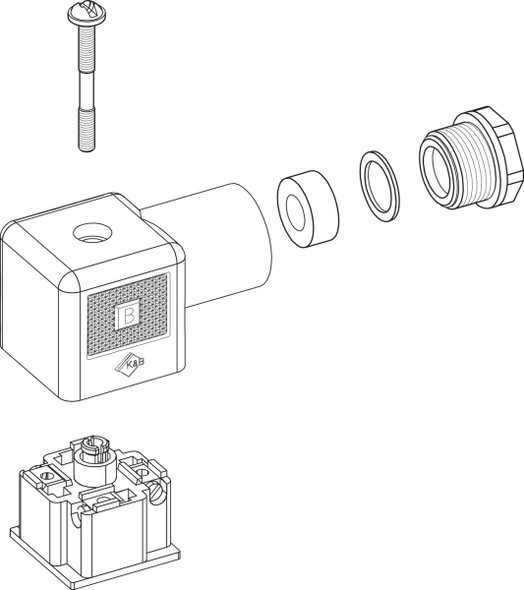

Series 210 solenoid valve connectors are available with low or standard housing. They comply with design A according to DIN EN 175301-803 (formerly DIN 43650) and have 2+PE and 3+PE contacts. They have protection class IP65/67 and are available as self-connectable and moulded versions. For visual status indication, many models are also available as LED variants. Your devices can be protected against electrical voltage peaks by an optional protective circuit inside the solenoid valve connector.
General Features| Part no. | 43 1714 136 03 |
|---|
| Connector design | Female power connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | Central bolt |
|---|
| Termination | screw clamp |
|---|
| Degree of protection | IP40 without seal
IP65 with seal, see accessories |
|---|
| Cross-sectional area | 0.34-1.50 mm² |
|---|
| Cable outlet | 8.0-10.0 mm |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 50 Mating cycles |
|---|
| Additional information | Circuit E6 |
|---|
| Weight (g) | 24.21 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 24 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 10.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
| Wiring | E6 |
|---|
Material| Housing material | PC |
|---|
| Contact body material | PA (UL94 HB) |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Ni (nickel) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 61fb5a15-ef93-4a38-9842-a45a565445fa |
|---|
