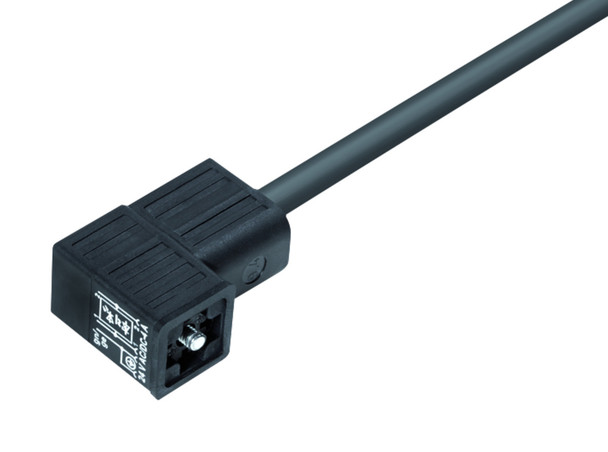

Series 230 solenoid valve connectors in style C with low housing are available with 2+PE and 3+PE contacts and have protection class IP65/67. Self-terminating versions with screw terminals are also available, as are PUR-sheathed connecting cables in lengths of 3 m or 5 m, which comply with protection class IP67. Type C connectors, like types A and B, conform to DIN EN 175301-803. In addition to these solenoid valve connectors, the 230 series includes the matching appliance connectors. Type C is also available in LED and protective-sheathed versions
| Part no. | 33 5937 500 520 |
|---|---|
| Connector design | Female solenoid valve connector |
| Cable length | 5 m |
| Version | Connector socket angled |
| Connector locking system | Central bolt |
| Termination | moulded on the cable |
| Degree of protection | IP67 |
| Cross-sectional area | 0.75 mm² / AWG 18 |
| Temperature range from/to | -25 °C / 80 °C |
| Mechanical operation | > 50 Mating cycles |
| Additional information | Circuit Z20 |
| Weight (g) | 285.42 |
| Customs tariff number | 85444290 |
| Rated voltage | 24 V |
|---|---|
| Rated impulse voltage | 800 V |
| Rated current (40 °C) | 4.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| EMC compliance | unshielded |
| Wiring | Z20 |
| Housing material | PBT |
|---|---|
| Contact body material | PBT |
| Contact material | CuSn (bronze) |
| Contact plating | Ag (silver) |
| REACH SVHC | None (No pollutants) CAS 7439-92-1 (Lead) |
| SCIP number | SCIP-number not available |
