These snap-in connector series can be supplied with up to 5 contacts rated 3A at 60V. Several versions are available including cable connectors with or without strain relief, connectors moulded to cables and panel mount connectors with solder and dip-solder termination. Cable outlet size is 3-5mm and users can expect more than 100 mating cycles.

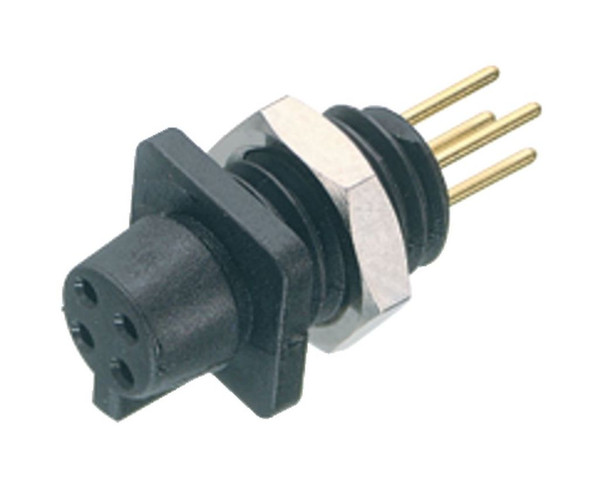

General Features| Part no. | 09 9792 20 05 |
|---|

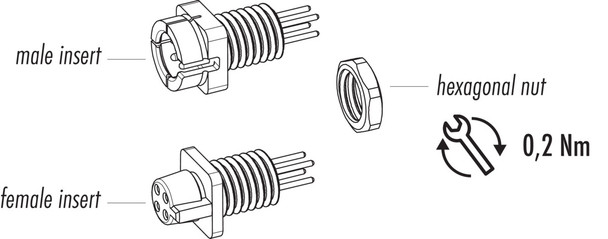

| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | snap-in |
|---|
| Termination | THT |
|---|
| Degree of protection | IP40 |
|---|
| Temperature range from/to | -25 °C / 70 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 1.38 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 3,0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | b44a59ed-7145-4887-9c96-f35a50887f84 |
|---|
