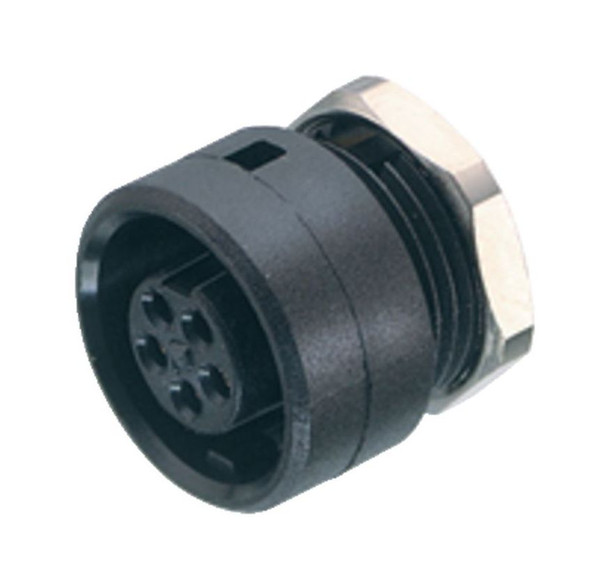

The 710 series includes IP40 cable connectors and flange connectors available with 2-8 gold-plated contacts and rated between 1A and 4A at 125V. They have a plastic housing, a bayonet lock and a solder connection. The connection cross-section is between 0.14 mm² and 0.25 mm² with a limit temperature of -40°C to +85°C.
General Features| Part no. | 09 9482 00 08 |
|---|
| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | Bayonet |
|---|
| Termination | solder |
|---|
| Degree of protection | IP40 |
|---|
| Cross-sectional area | 0.14 mm² / AWG 26 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 1.70 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 1.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA (UL94 V-0) |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 6a9278bd-d925-495a-a41c-cecbc2a612b5 |
|---|
