Description
| Part no. | 09 5288 00 08 |
|---|---|

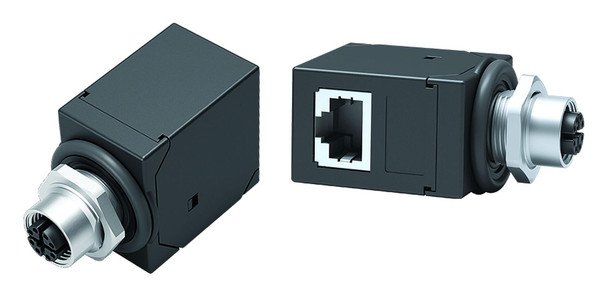

| Connector design | Lead-through for control cabinet, female connector RJ45 angled |
| Version | Adapter |
| Connector locking system | screw |
| Termination | pluggable |
| Degree of protection | IP67 IP20 (RJ45) |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 30.88 |
| Customs tariff number | 85369010 |
| Rated voltage | 50 V (AC) / 60 V (DC) |
|---|---|
| Rated impulse voltage | 800 V |
| Rated current (40 °C) | 0.5 A |
| Insulation resistance | > 10? ? |
| Pollution degree | 3 |
| Transmission rate | CAT 6A |
| Overvoltage category | II |
| Insulating material group | III |
| EMC compliance | shielded |
| Housing material | Brass nickel-plated / Zinc die-cast nickel-plated |
|---|---|
| Contact body material | PA |
| Contact material | CuSn (bronze) |
| Contact plating | Au (gold) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | 9dcb8098-9cab-4392-b996-e800dce334d0 |
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
|---|
