With a push-pull locking system and protection of up to IP67, the 430 series comes in both cable connector and panel mount versions both of which are shieldable if required. Available with 3 to 8 contacts rated between 1A and 4A, termination is solder with wire sizes from 0.14mm² to 0.25mm². The diameter of the cable connector is 14.5mm while the panel mount version measures 17.5mm.
General Features| Part no. | 09 4908 080 03 |
|---|

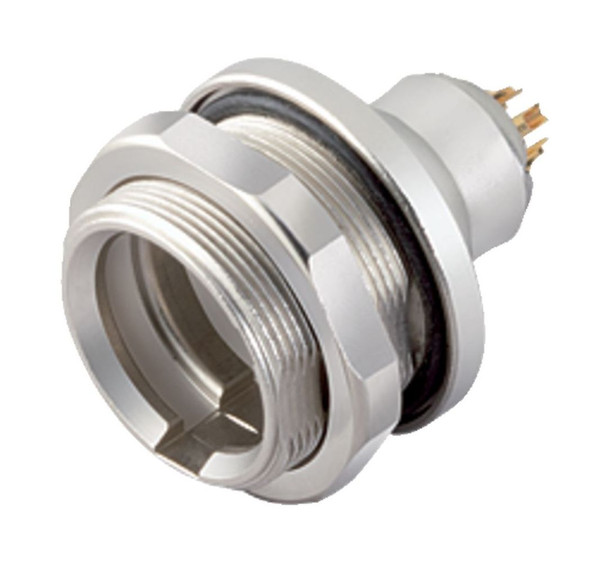

| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | Push-Pull |
|---|
| Termination | solder |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 10.14 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Pollution degree | 2 |
|---|
| Overvoltage category | I |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PUR/PA |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 552eb180-0739-402b-91b1-88c8451fa089 |
|---|
