440 Series push-pull circular connectors are designed for demanding applications that require a fast IP67 connection with the option of EMC shielding. They are available with 3 to 19 contacts in straight cable and flange versions with solder termination. The cable passage is 4 to 8 mm. Depending on the number of contacts, 440 series connectors are designed for a rated current of 3 A to 7 A.

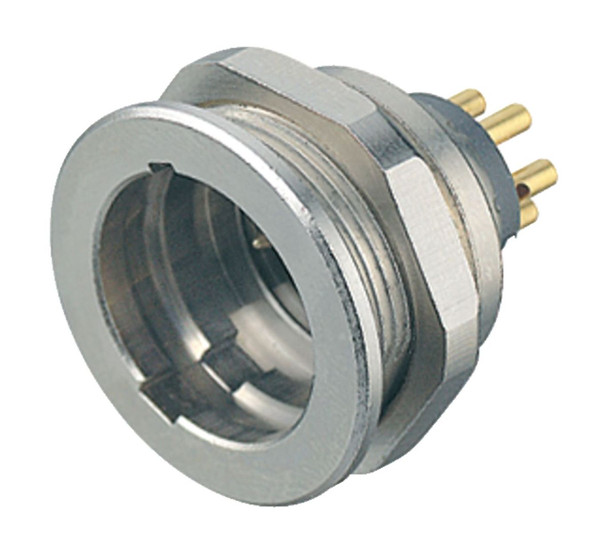

General Features| Part no. | 09 4831 15 08 |
|---|
| Connector design | Male panel mount connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | Push-Pull |
|---|
| Termination | solder |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.75 mm² / AWG 18 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 1000 Mating cycles |
|---|
| Weight (g) | 20.94 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 500 V |
|---|
| Rated current (40 °C) | 5.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | I |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 8a8ef2cc-ae78-4de3-844c-011699b60cca |
|---|
