M12 connectors with X-coding of the 825/876 series for high-performance applications such as PROFINET and Ethernet have screw/cut terminal connections. Cable connectors are also available with moulded cable, flange connectors have solder and dip solder connections. The connectors are excellently shielded and comply with protection class IP67. Shielded adapters M12-X to RJ45 are available straight and angled.

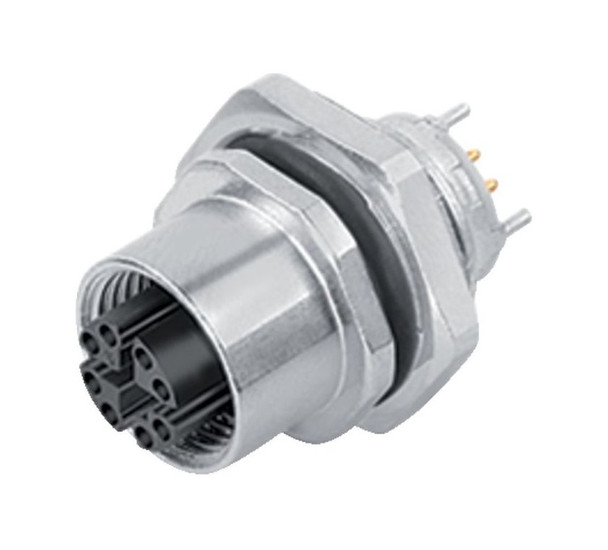

General Features| Part no. | 09 3782 95 08 |
|---|
| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | THT |
|---|
| Degree of protection | IP67 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 14.42 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 50 V (AC) / 60 V (DC) |
|---|
| Rated current (40 °C) | 0.5 A |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Transmission rate | CAT 6A |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Shield pin |
|---|
Material| Housing material | Zinc die-cast nickel-plated |
|---|
| Contact body material | PA |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | e0966dc0-2cf9-431c-a20a-4c2bd0e817b4 |
|---|
