In Stock
Binder

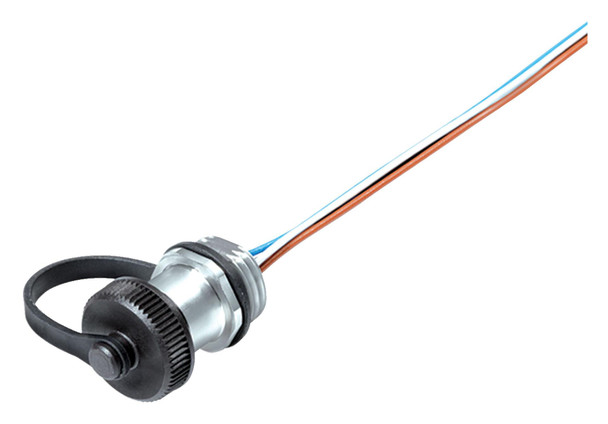

Binder 09-3442-284-05 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP69K, M16x1,5, stainless steel

No reviews yet Write a Review
$31.04
Binder 09-3442-284-05 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP69K, M16x1,5, stainless steel | American Cable Assemblies
Binder 09-3442-284-05 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP69K, M16x1,5, stainless steel
Binder 09-3442-284-05 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP69K, M16x1,5, stainless steel
SKU:
BN09-3442-284-05
MPN:
09-3442-284-05
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M12, series 763, Automation Technology - Sensors and Actuators
Numbers of contacts:
5
$31.04

Frequently Bought Together:

Binder 09-3442-284-05 M12-A Female panel mount connector, Contacts: 5, unshielded, single wires, IP69K, M16x1,5, stainless steel | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.
General Features
Part no. 09 3442 284 05
Connector design Female panel mount connector
Wire length 0.2 m
Version Connector socket straight
Connector locking system screw
Termination single wires
Degree of protection IP69K
IP68
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 100 °C
Mechanical operation > 100 Mating cycles
Additional information stainless steel
Weight (g) 17.74
Customs tariff number 85369010

Electrical Parameters
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current (40 °C) 4.0 A
Insulation resistance > 10? ?
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Material
Housing material Stainless steel
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 07072e34-da57-44d7-935a-6b73dbb0e535
