These circular connectors with screw locking according to DIN EN 61076-2-105 are available as straight and angled cable versions as well as easy-to-mount flange plugs and sockets. A threaded ring serves as vibration protection. There is a choice of 3 and 4 gold-plated brass contacts with a rated current of 1A at a rated voltage of 60V. Protection class is IP67.

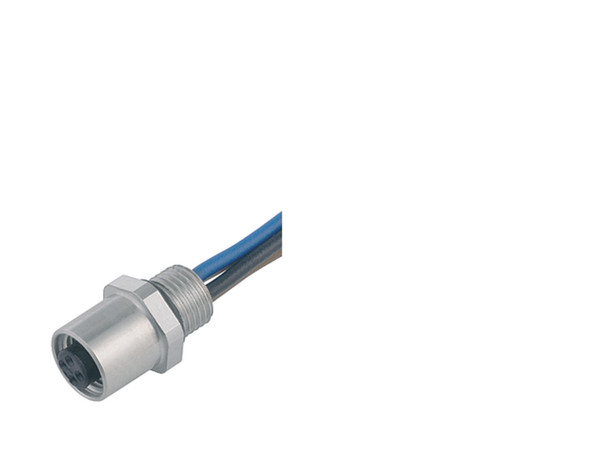

General Features| Part no. | 09 3106 00 03 |
|---|
| Connector design | Female panel mount connector |
|---|
| Wire length | 0.2 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | single wires |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.14 mm² / AWG 26 |
|---|
| Temperature range from/to | -25 °C / 80 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 3.35 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 1.0 A |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | I |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PA |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | c705038f-766b-4530-adfc-365d03362af5 |
|---|
