These 7/8 inch connectors with screw locking of the 820/870 series are available as a self-terminating variant with screw terminal connection or as pre-assembled cable connectors with straight or angled cable outlet. They comply with protection class IP67/IP68 . 2+PE, 3+PE and 4+PE contacts are available Flange connectors for housing installation with stranded and dip solder connection complete the portfolio. Furthermore, the series is UL-approved.
General Features| Part no. | 09 2475 100 05 |
|---|
| Connector design | Socket |
|---|

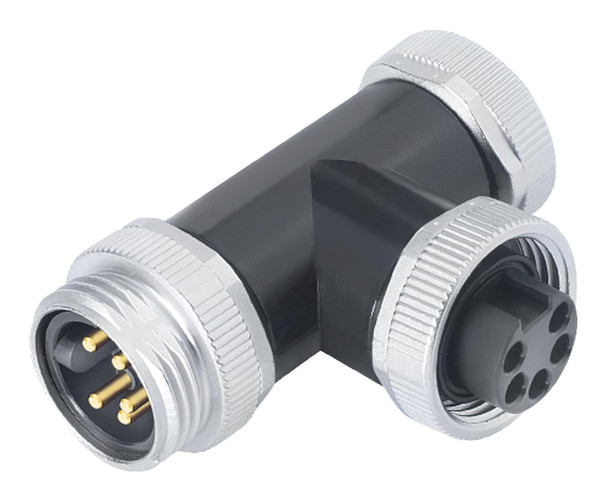

| Version | Distributor |
|---|
| Connector locking system | screw |
|---|
| Termination | solder |
|---|
| Degree of protection | IP68 |
|---|
| Temperature range from/to | -30 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 72.80 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 300 V |
|---|
| Rated impulse voltage | 4000 V |
|---|
| Rated current (40 °C) | 8.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | I |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | Macromelt |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 1893898a-5a91-4a2e-bd81-75b616eb5786 |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
