These 7/8 inch connectors with screw locking of the 820/870 series are available as a self-terminating variant with screw terminal connection or as pre-assembled cable connectors with straight or angled cable outlet. They comply with protection class IP67/IP68 . 2+PE, 3+PE and 4+PE contacts are available Flange connectors for housing installation with stranded and dip solder connection complete the portfolio. Furthermore, the series is UL-approved.
General Features| Part no. | 09 2446 100 03 |
|---|

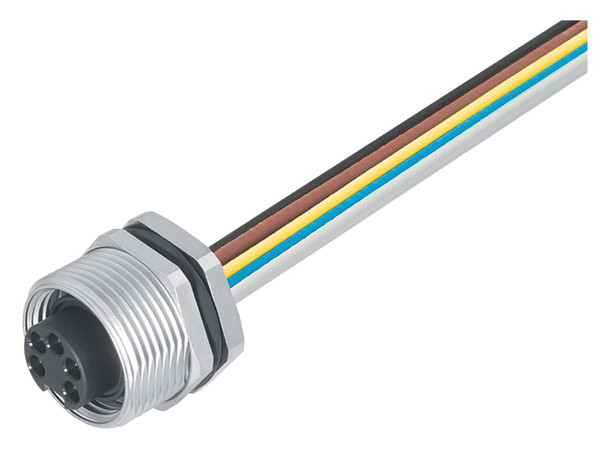

| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | single wires |
|---|
| Degree of protection | IP68 |
|---|
| Cross-sectional area | 0.75 mm² / AWG 18 |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 68.40 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 300 V (600 V UL) |
|---|
| Rated impulse voltage | 4000 V |
|---|
| Rated current (40 °C) | 10.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | I |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | CuZn (Brass nickel plated) |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 17badd6a-578e-4b8b-a09a-13153cbf655b |
|---|
