Description

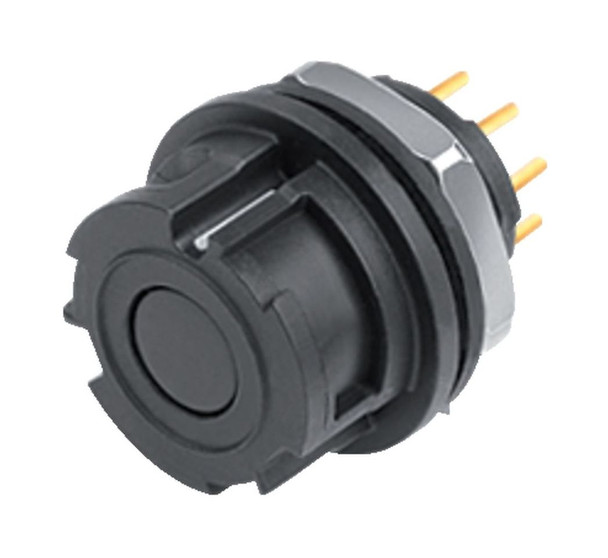

| Part no. | 09 0774 090 08 |
|---|---|
| Connector design | Female panel mount connector |
| Version | Connector socket straight |
| Connector locking system | Bayonet |
| Termination | THT |
| Degree of protection | IP67 |
| Cross-sectional area | 0.25 mm² / AWG 24 |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 5000 Mating cycles |
| Weight (g) | 4.50 |
| Customs tariff number | 85369010 |
| Rated voltage | 175 V |
|---|---|
| Rated impulse voltage | 1750 V |
| Rated current (40 °C) | 2.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 2 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | unshielded |
| Housing material | PA |
|---|---|
| Contact body material | PA (UL94 V-0) |
| Contact material | CuSn (bronze) |
| Contact plating | Au (gold) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | 07c7ab4a-1263-44f1-8d38-c1f868516619 |
