Description
| Part no. | 09 0702 800 05 |
|---|---|

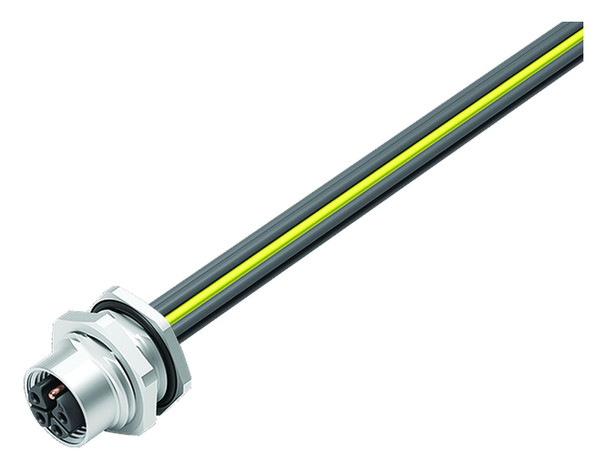

| Connector design | Female panel mount connector |
| Version | Connector socket straight |
| Connector locking system | screw |
| Termination | single wires |
| Degree of protection | IP68 |
| Cross-sectional area | AWG 14 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Additional information | screwable from the front |
| Weight (g) | 39.88 |
| Customs tariff number | 85369010 |
| Rated voltage | 630 V |
|---|---|
| Rated impulse voltage | 6000 V |
| Rated impulse voltage UL | 6000 V |
| Rated current (40 °C) | 12.0 A |
| Insulation resistance | > 10¹? ? |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | II |
| EMC compliance | unshielded |
| Housing material | CuZn (Brass nickel plated) |
|---|---|
| Contact body material | PA |
| Contact material | CuSn (bronze) |
| Contact plating | Au (gold) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | c0bb26b1-7105-4e59-aa27-7a29d903e26a |
