Binder

Binder 09-0701-300-05 M12-K Male panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1,5, screwable from the front

No reviews yet Write a Review
$36.88
Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies
Binder 09-0701-300-05 M12-K Male panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1,5, screwable from the front
Binder 09-0701-300-05 M12-K Male panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1,5, screwable from the front
SKU:
BN09-0701-300-05
MPN:
09-0701-300-05
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Numbers of contacts:
4+PE
Wire gauge (AWG):
AWG 16
$36.88

Frequently Bought Together:

Binder 99-9128-090-08 Snap-In IP67 Female panel mount connector, Contacts: 8, unshielded, THT, IP67, VDE | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

General Features
Part no. 09 0701 300 05
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination single wires
Degree of protection IP68
Cross-sectional area AWG 16
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Additional information screwable from the front
Weight (g) 32.15
Customs tariff number 85369010

Electrical Parameters
Rated voltage 630 V
Rated impulse voltage 6000 V
Rated impulse voltage UL 6000 V

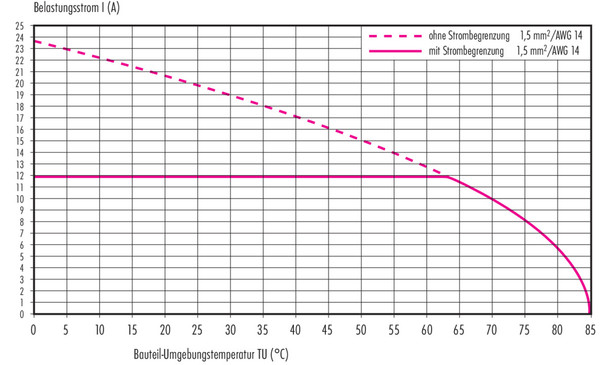

Rated current (40 °C) 12.0 A
Insulation resistance > 10¹? ?
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance unshielded
Material
Housing material CuZn (Brass nickel plated)
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number f44e2339-02e0-4530-bab3-db066291d2a6
