Connectors of the 814 series with screw locking according to DIN EN 61076-2-111 are S-coded for AC applications. They have 2+PE and 3+PE contacts with a rated current of 12A at 630VAC. These connectors are available in straight and angled cable versions, with screw terminal connection. The flange versions are available with screw terminals as well as with stranded wires.

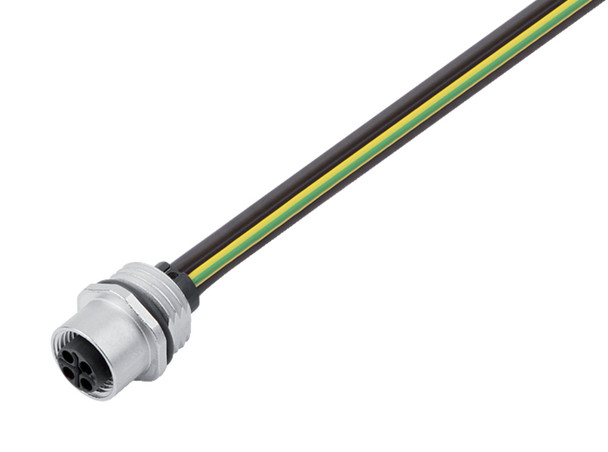

General Features| Part no. | 09 0692 700 04 |
|---|
| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | single wires |
|---|
| Degree of protection | IP68 |
|---|
| Cross-sectional area | 1.38 mm² / AWG 16 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 23.50 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 630 V |
|---|
| Rated impulse voltage | 6000 V |
|---|
| Rated current (40 °C) | 12.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | Zinc die-cast nickel-plated |
|---|
| Contact body material | PA |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | ad2c5714-a19c-4f1e-a8e8-96ebeb3638f5 |
|---|
