Connectors of the 823 series with screw locking according to DIN EN 61076-2-111 are L-coded for DC applications. L-coded versions have 4+FE contacts with a rated current of 12A/ 16A at 63VDC. The straight and angled cable connectors have screw terminal connection. Flanged connectors are available with dip solder terminals as well as with stranded wires.
General Features| Part no. | 09 0641 100 05 |
|---|

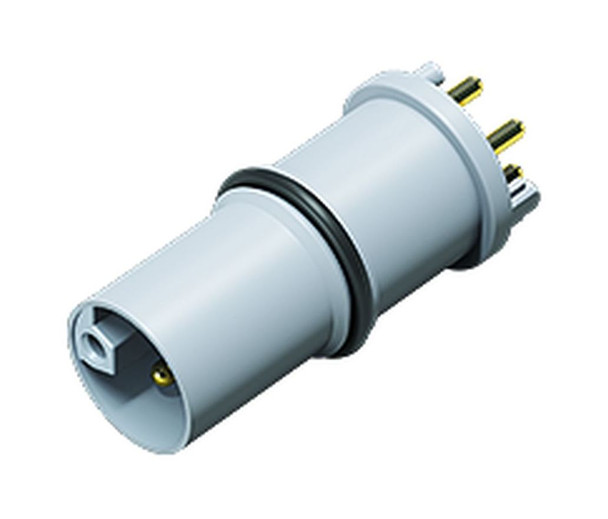

| Connector design | Male receptacle |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | THR |
|---|
| Degree of protection | IP68 |
|---|
| Temperature range from/to | -40 °C / 105 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 4.54 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 63 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 16.0 A |
|---|
| Insulation resistance | > 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | I |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PA (UL94 V-0) |
|---|
| Contact material | CuSn (bronze) / CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 33226cf8-b762-458f-b042-32bc0e8d62f1 |
|---|
