Connectors of the 813 series with screw locking according to DIN EN 61076-2-111 are T-coded for DC applications. T-coded versions have 4 contacts with a rated current of 12 A at 63 VDC. The straight and angled cable connectors have screw terminals, but are also available with moulded cable. Flange connectors have dip solder terminals, but also stranded wires.
General Features| Part no. | 09 0632 070 04 |
|---|
| Connector design | Square female panel mount connector |
|---|

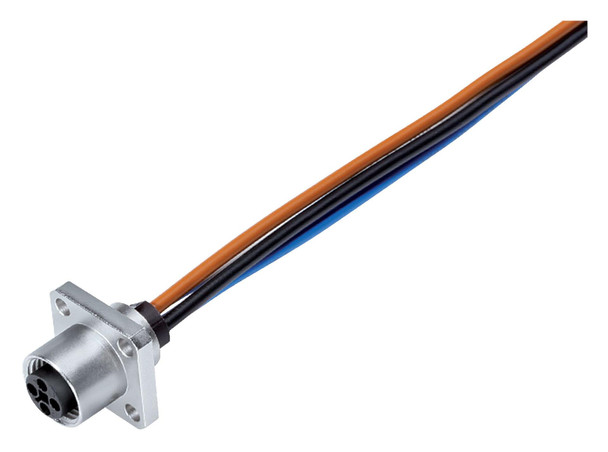

| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | single wires |
|---|
| Degree of protection | IP40
IP67 with seal, see accessories |
|---|
| Cross-sectional area | 1.38 mm² / AWG 16 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 27.88 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 63 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 12.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PA |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 5b86f454-e3a6-4554-b007-66603068e5d1 |
|---|
