The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.

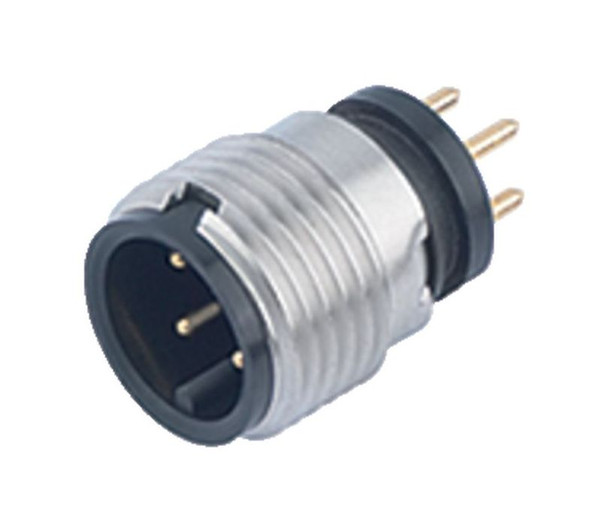

General Features| Part no. | 09 0431 212 04 |
|---|
| Connector design | Male panel mount connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Weight (g) | 2.61 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Insulation resistance | > 10? ? |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 888f17ca-82bf-43c5-bacf-f36ff8135cb7 |
|---|
