These subminiature M9 connectors are available with 2 to 8 contacts for panel mounting or as cable connectors where binder also offers moulded versions. Both versions are shieldable. Cable connectors feature solder termination while the panel mount versions are available with solder and dip solder termination. Degree of protection is IP67 with an operating temperature range is -40°C to +85°C.

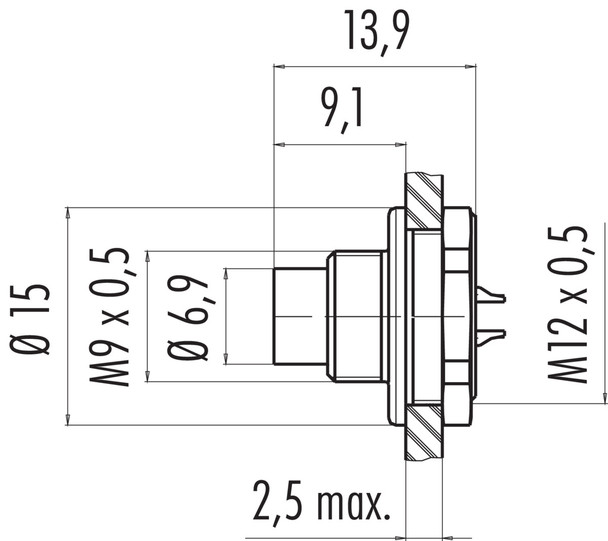

General Features| Part no. | 09 0411 00 04 |
|---|
| Connector design | Male panel mount connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | solder |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 5.32 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 3,0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | CuZn (Brass nickel plated) |
|---|
| Contact body material | PA (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | SCIP-number not available |
|---|
