Description
| Part no. | 09 0324 700 06 |
|---|---|

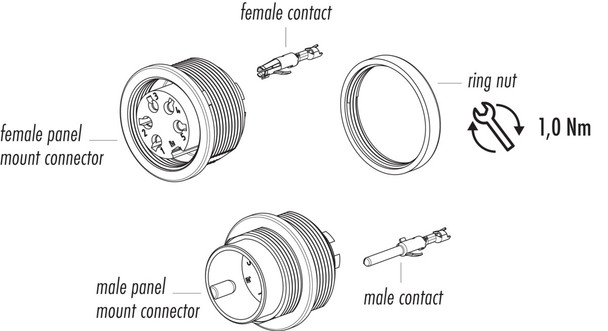

| Connector design | Female panel mount connector |
| Version | Connector socket straight |
| Connector locking system | screw |
| Termination | crimping (Crimp contacts must be ordered separately) |
| Degree of protection | IP40 |
| Cross-sectional area | click here for more info |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 6.70 |
| Customs tariff number | 85369010 |
| Rated voltage | 250 V |
|---|---|
| Rated impulse voltage | 1500 V |
| Rated current (40 °C) | 5.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 1 |
| Overvoltage category | I |
| Insulating material group | III |
| EMC compliance | unshielded |
| Contact body material | PBT (UL94 V-0) |
|---|---|
| Contact material | depending on crimp contact (accessory) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | e99548d3-03aa-444a-b84a-043f5cd51277 |
