Description
| Part no. | 09 0323 99 06 |
|---|---|

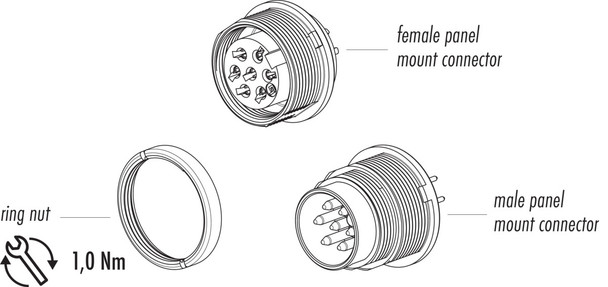

| Connector design | Male panel mount connector |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | THT |
| Degree of protection | IP40 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 12.21 |
| Customs tariff number | 85369010 |
| Rated voltage | 250 V |
|---|---|
| Rated impulse voltage | 1500 V |
| Rated current (40 °C) | 5.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 1 |
| Overvoltage category | I |
| Insulating material group | III |
| EMC compliance | unshielded |
| Housing material | Zinc die-cast nickel-plated |
|---|---|
| Contact body material | PBT (UL94 V-0) |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | 4bfd9335-e67c-48f0-8a1c-910613a0904b |
