These circular connectors according to DIN EN 61076-2-106, which are available as straight and angled cable versions as well as flange versions, comply with protection class IP67. The connectors are offered with 2 to 24 contacts with dip solder, crimp, screw clamp, solder and stranded wires and are also available with a moulded cable. Some versions are shieldable and users can expect more than 500 mating cycles. The 8-pole DIN versions are AWG compliant.

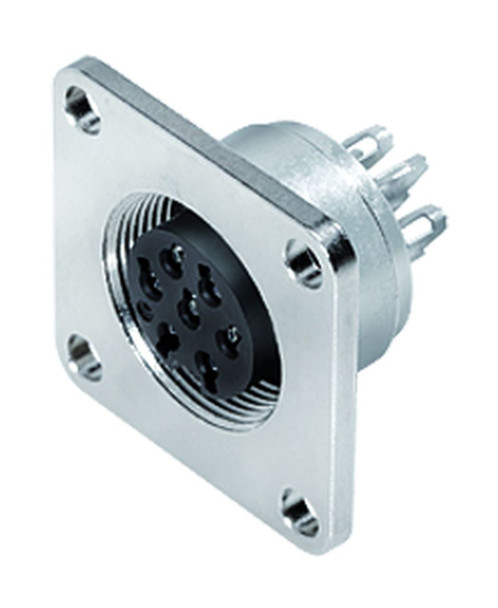

General Features| Part no. | 09 0174 300 08 |
|---|
| Connector design | Square female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | solder |
|---|
| Degree of protection | IP68
IP67 |
|---|
| Cross-sectional area | 0.75 mm² / AWG 18 |
|---|
| Temperature range from/to | -40 °C / 95 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 10.07 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 500 V |
|---|
| Rated current (40 °C) | 5.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | I |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | Zinc die-cast nickel-plated |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Ag (silver) |
|---|
| Locking material | Zinc die-cast nickel-plated |
|---|
| SCIP number | SCIP-number not available |
|---|
