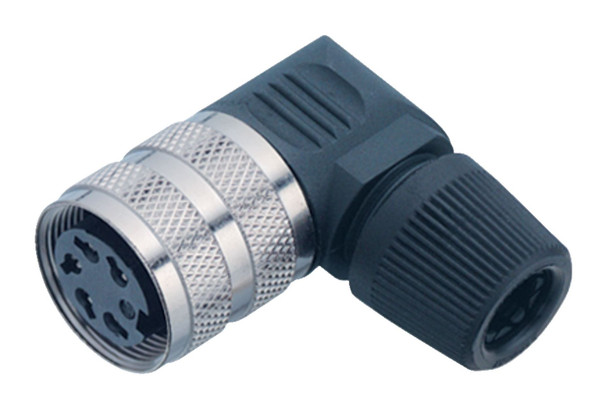

Binder 09-0162-72-14 M16 IP40 Female angled connector, Contacts: 14 (14-b), 6.0-8.0 mm, unshielded, solder, IP40

No reviews yet Write a Review
$30.16
Binder 09-0162-72-14 M16 IP40 Female angled connector, Contacts: 14 (14-b), 6.0-8.0 mm, unshielded, solder, IP40 | American Cable Assemblies
Binder 09-0162-72-14 M16 IP40 Female angled connector, Contacts: 14 (14-b), 6.0-8.0 mm, unshielded, solder, IP40
Binder 09-0162-72-14 M16 IP40 Female angled connector, Contacts: 14 (14-b), 6.0-8.0 mm, unshielded, solder, IP40
SKU:
BN09-0162-72-14
MPN:
09-0162-72-14
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M16, series 682, Miniature Connectors
Numbers of contacts:
14 (14-b)
$30.16

Frequently Bought Together:

Binder 09-0162-72-14 M16 IP40 Female angled connector, Contacts: 14 (14-b), 6.0-8.0 mm, unshielded, solder, IP40 | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

General Features
Part no. 09 0162 72 14
Connector design Female angled connector
Version Connector socket angled
Connector locking system screw
Termination solder
Degree of protection IP40
Cross-sectional area 0.25 mm² / AWG 24
Cable outlet 6.0-8.0 mm
Twistability not rotatable
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 1000 Mating cycles
Weight (g) 16.65
Customs tariff number 85369010

Electrical Parameters
Rated voltage 60 V
Rated impulse voltage 500 V
Rated current (40 °C) 3,0 A
Insulation resistance ? 10¹? ?
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Material
Housing material PA
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number f65c12bd-a762-42dd-867e-06f95c15bffb
