Description

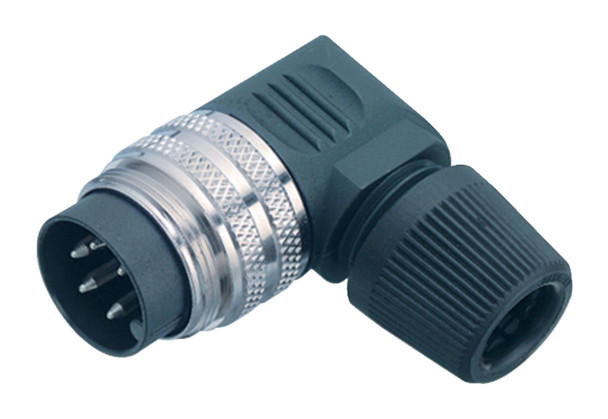

| Part no. | 09 0153 72 08 |
|---|---|
| Connector design | Male angled connector |
| Version | Connector pin angled |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP40 |
| Cross-sectional area | 0.75 mm² / AWG 18 |
| Cable outlet | 6.0-8.0 mm |
| Twistability | not rotatable |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 14.82 |
| Customs tariff number | 85369010 |
| Rated voltage | 60 V |
|---|---|
| Rated impulse voltage | 500 V |
| Rated current (40 °C) | 5.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 1 |
| Overvoltage category | I |
| Insulating material group | III |
| EMC compliance | unshielded |
| Housing material | PA |
|---|---|
| Contact body material | PBT (UL94 V-0) |
| Contact material | CuZn (brass) |
| Contact plating | Ag (silver) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | b8cb8f38-9fc2-4095-be52-23a294a98d25 |
