These bayonet connectors comply with protection class IP40 and offer 3 to 12 contacts with a rated current of 5 A and 10 A (depending on the number of contacts). Cable and flange connectors have a solder connection and an operating temperature range from -40 °C to +85 °C. Flanged plug/flange socket of the 690 series has the dimensions 31mm x 44mm, a shieldable version is available. More than 500 mating cycles are possible.
General Features| Part no. | 09 0066 70 07 |
|---|

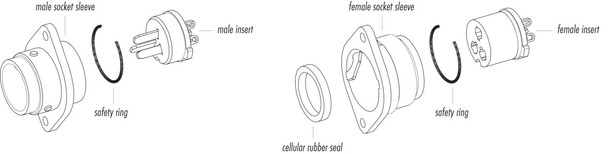

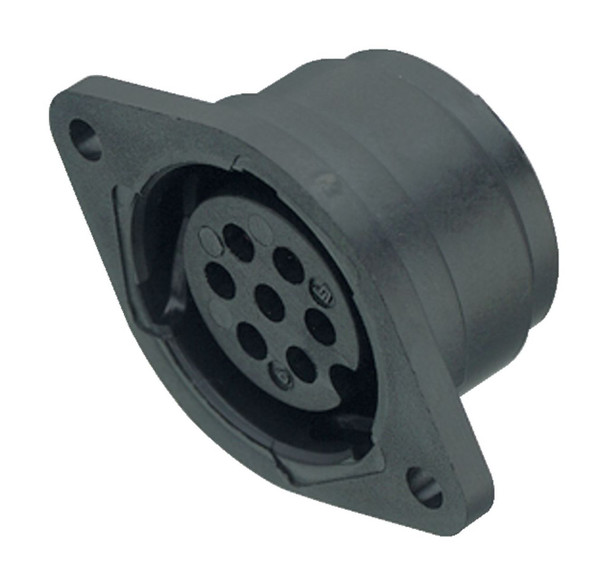

| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | Bayonet |
|---|
| Termination | solder |
|---|
| Degree of protection | IP40 |
|---|
| Cross-sectional area | 0.75 mm² / AWG 18 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 50 Mating cycles |
|---|
| Weight (g) | 12.91 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 2500 V |
|---|
| Rated current (40 °C) | 5.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Shielding plate |
|---|
Material| Housing material | PBT |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Ag (silver) |
|---|
| REACH SVHC | None (No pollutants)
|
|---|
| SCIP number | SCIP-number not available |
|---|
