691 series connectors are available in both cable and flange versions and have an M25 screw locking mechanism and a solder connection. They comply with protection class IP40 with an operating temperature range from -40 ?C to +85 ?C. These connectors are available with 3 to 12 contacts with a rated current of 5 A (125 V) and 10 A (250 V) depending on the number. The diameter of the cable connector/cable socket is 28 mm, the flange version has a diameter of 42.5 mm. Both are shieldable.

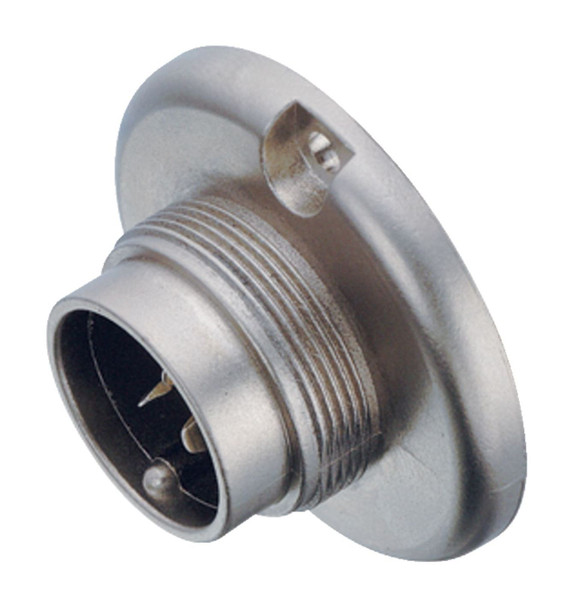

General Features| Part no. | 09 0039 00 05 |
|---|
| Connector design | Male panel mount connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | solder |
|---|
| Degree of protection | IP40 |
|---|
| Cross-sectional area | 1.50 mm² / AWG 16 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 46.34 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 2500 V |
|---|
| Rated current (40 °C) | 10.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Shield on the housing |
|---|
Material| Housing material | GD-AL eloxiert |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Ag (silver) |
|---|
| REACH SVHC | None (No pollutants)
|
|---|
| SCIP number | SCIP-number not available |
|---|
