Description
| Part no. | 08 3090 000 001 Alternative part no.: 52 0607 000 |
|---|---|
| Cable length | variable length |
| Weight (g) | 0.00 |
| EMC compliance | shielded |
|---|
| REACH SVHC | None (No pollutants) |
|---|---|
| SCIP number | SCIP-number not available |

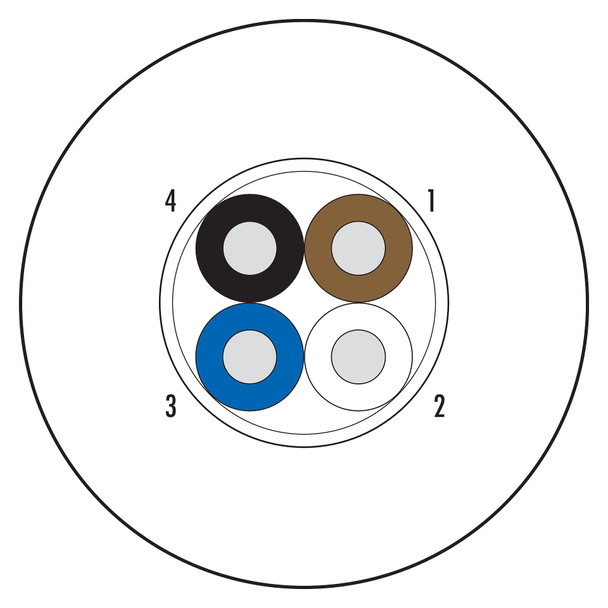

| Structure of the cable | |
| Cable diameter | 5.4 mm |
|---|---|
| Cross section | 4 x 0.34 mm² |
| Sheath material | PVC |
| Single-lead insulation | PVC Y18 (105 °C) according to UL1731 |
| Single-lead structure | 42 x 0.10 mm |
| Cable color | grey (RAL 7000) |
| Electrical properties | |
| Cable Insulation resistance | > 100 ?/Km |
| Operating voltage | ? 300 V |
| Cable test voltage | ? 2500 V effective |
| Conductor resistance | 57 ?/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ? 5 x Ø |
| Bending radius, moving cable | ? 10 x Ø |
| Bending cycles | > 2 million |
| Permitted acceleration | max. 5 m/s² + 1 m/s² |
| Travel distance, horizontal | at 5 m/s² -> 5 m |
| Travel distance, vertical | at 5 m/s² -> 2 m |
| Travel speed | at 5 m horizontal path -> 200 m/min |
| Thermal properties | |
| Temperature range cable in move from/to | -5 °C / 105 °C (UL +105 °C) |
| Temperature range cable fixed from/to | -40 °C / 105 °C (UL +105 °C) |
| Other features | |
| Halogen free | no |
