Description
| Part no. | 08 3087 000 000 |
|---|---|
| Cable length | 100 m |
| Weight (g) | 3509.00 |
| Customs tariff number | 85444995 |
| EMC compliance | shielded |
|---|
| REACH SVHC | None (No pollutants) |
|---|---|
| SCIP number | SCIP-number not available |

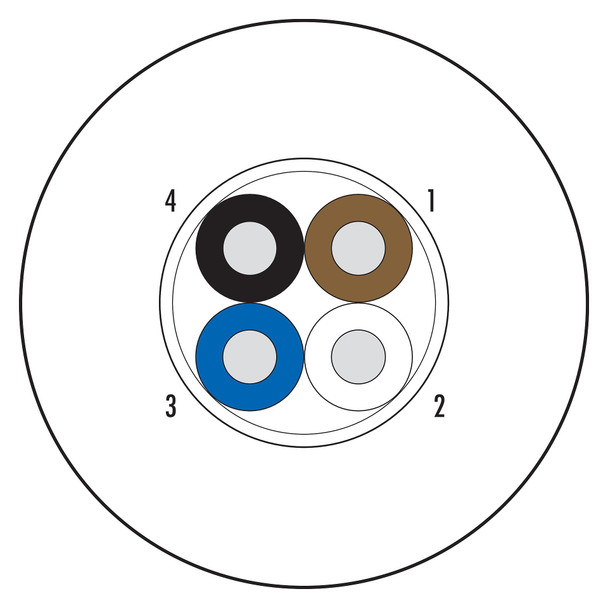

| Structure of the cable | |
| Cable type | Standard |
|---|---|
| Cable diameter | 4.7 mm |
| Cross section | 4 x 0.34 mm² |
| Sheath material | PUR |
| Single-lead insulation | PP9Y halogen-free |
| Single-lead structure | 42 x 0.10 mm |
| Cable color | black (RAL 9005) |
| Electrical properties | |
| Cable Insulation resistance | ? 7 x 10¹? ? x cm |
| Operating voltage | 300 V AC, use according to UL Style Page 20549 or 21198 (not for heavy current purposes) |
| Cable test voltage | ? 2000 V effective |
| Conductor resistance | 60 ?/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ? 5 x Ø |
| Bending radius, moving cable | ? 10 x Ø |
| Bending cycles | > 2 million |
| Permitted acceleration | 5 m/s² + 1 m/s² |
| Travel distance, horizontal | at 5 m/s² -> 5 m |
| Travel distance, vertical | at 5 m/s² -> 2 m |
| Travel speed | at 5 m horizontal path -> 200 m/min |
| Thermal properties | |
| Temperature range cable in move from/to | -25 °C / 90 °C (UL +80 °C) |
| Temperature range cable fixed from/to | -50 °C / 90 °C (UL +80 °C) |
| Other features | |
| Halogen free | yes |
